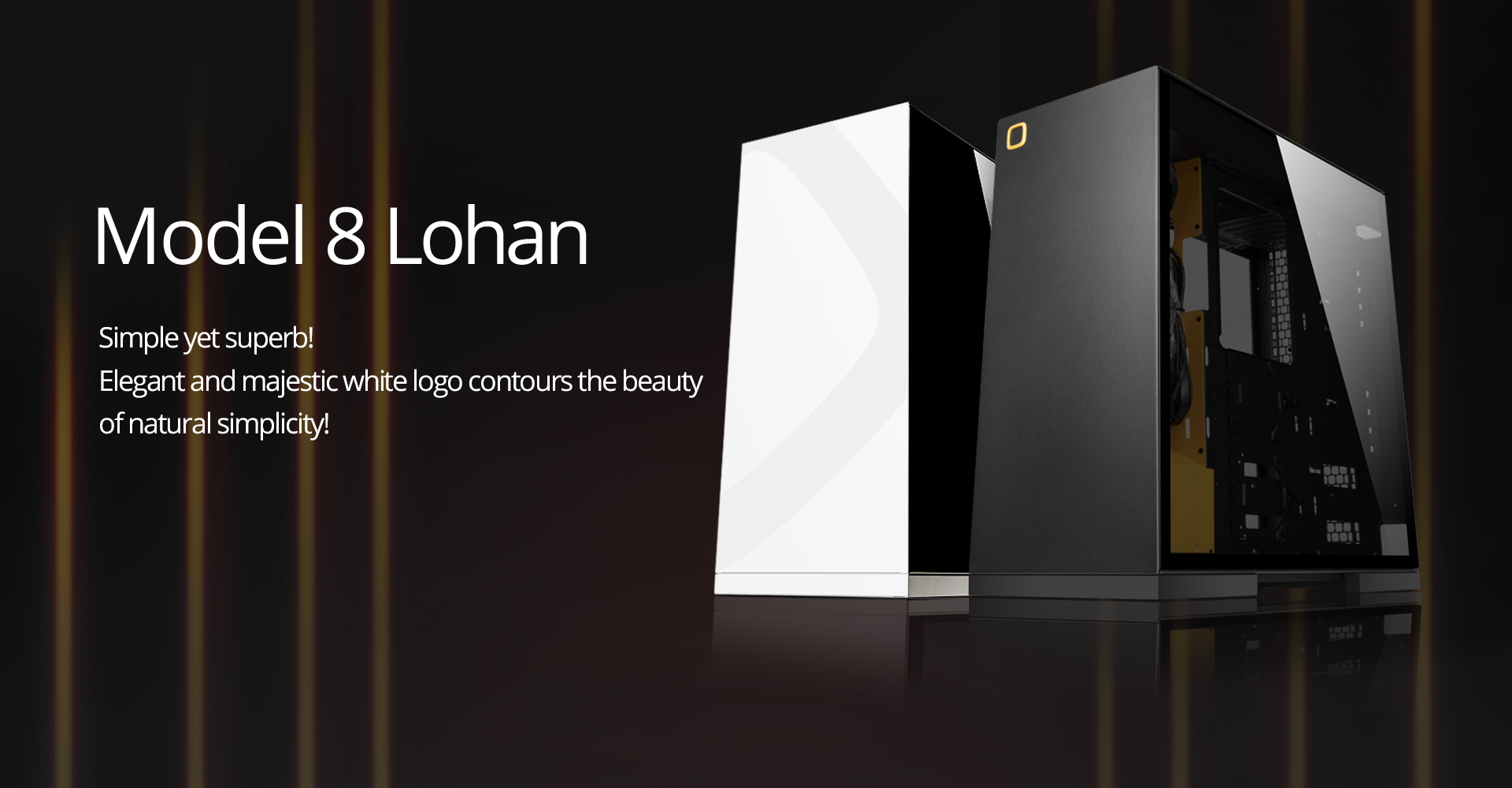

Lohan

Simple yet superb!

Elegant and majestic white logo contours the beauty of natural simplicity!

Color
Download

Specifications
Case Type Mid Tower

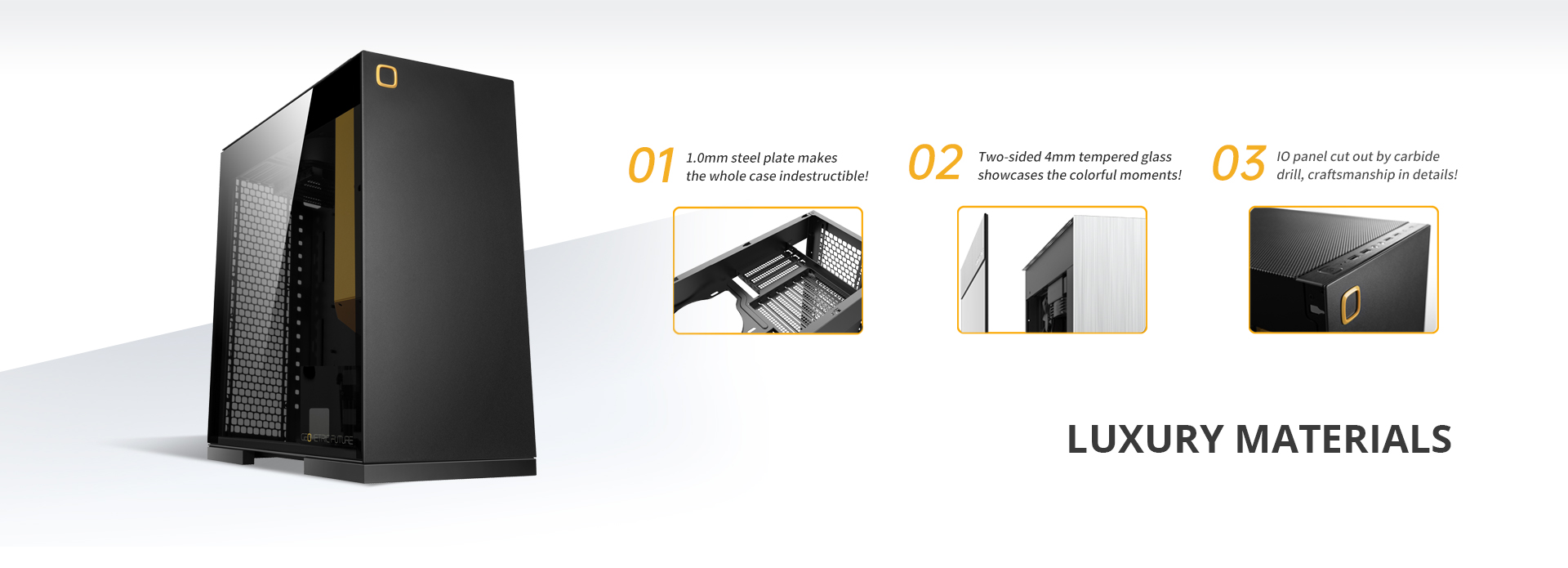

Material Steel T1.0 ,Tempered Glass T4.0
Product Dimension ( H x W x D ) 500×230×500mm, 19.7"×9.1"×19.7"
Drive Bay Max : 3x3.5'', 3x2.5''/ 6x2.5'' tray

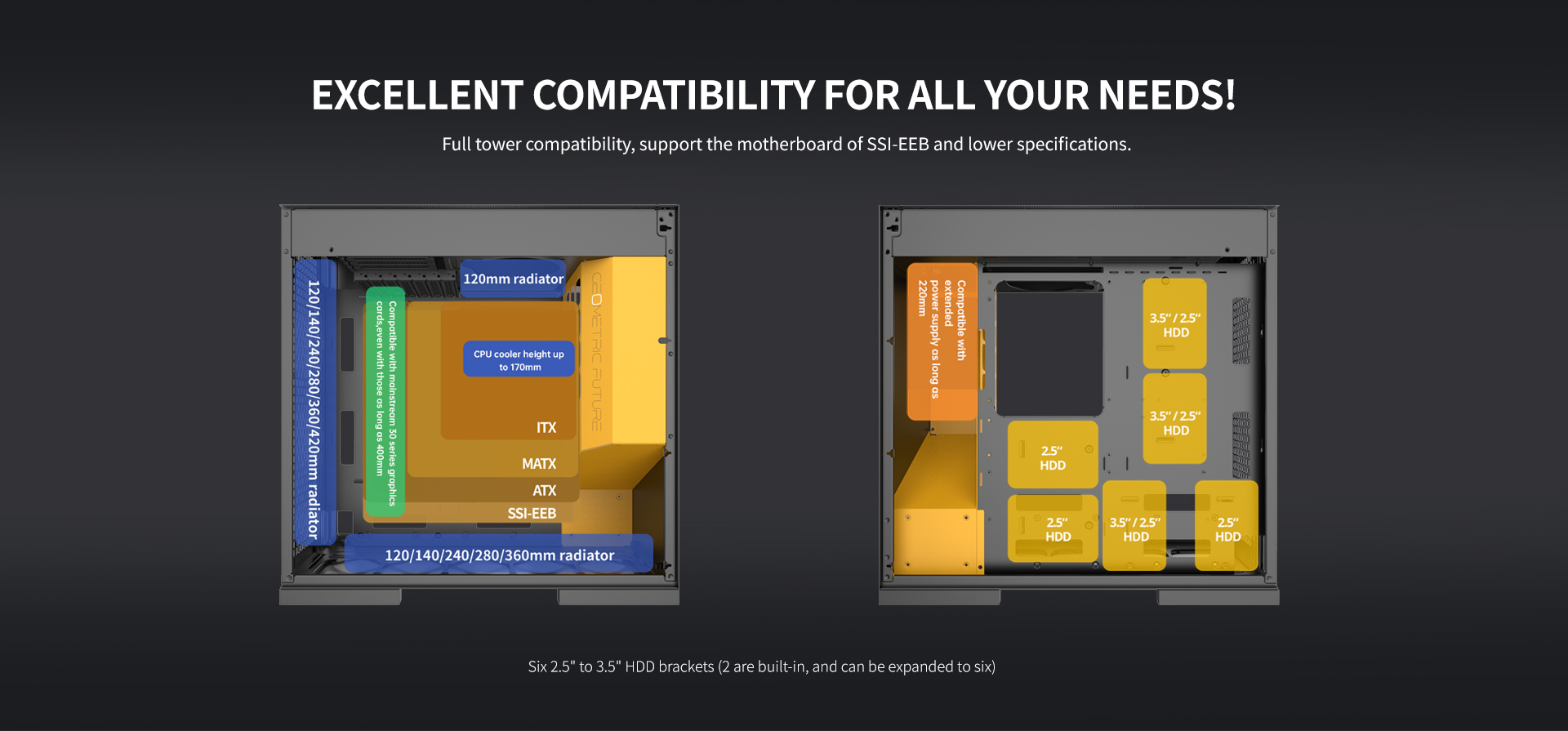

M/B Compatibility

E-ATX(12"×13"), ATX, Micro-ATX, Mini-ITX

Power Supply PSII : ATX 12V(Length < 220 mm)

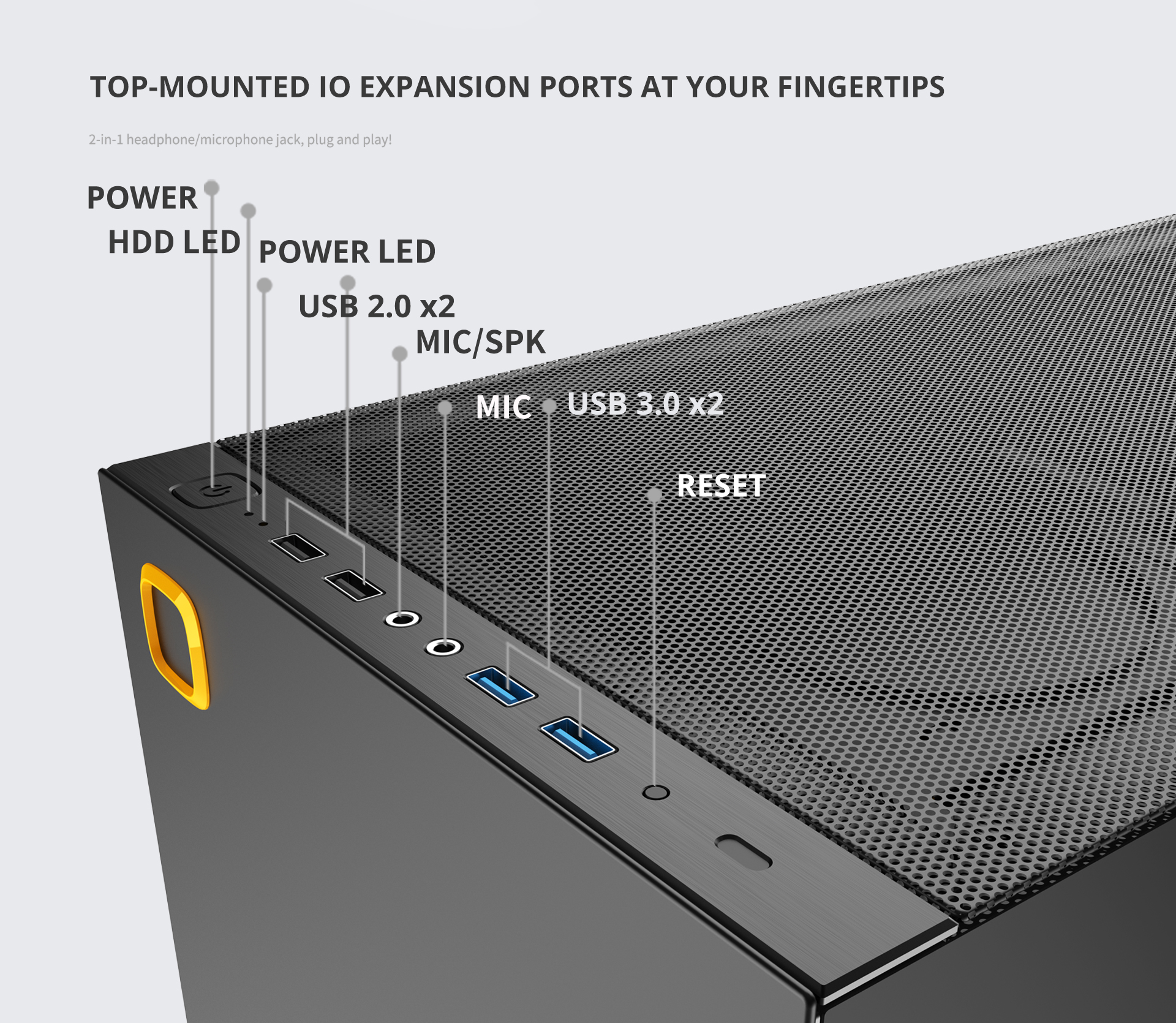

I/O Ports USB 3.0 x 2 , USB 2.0 x 2 , HD Audio(CTIA-SPK/MIC )

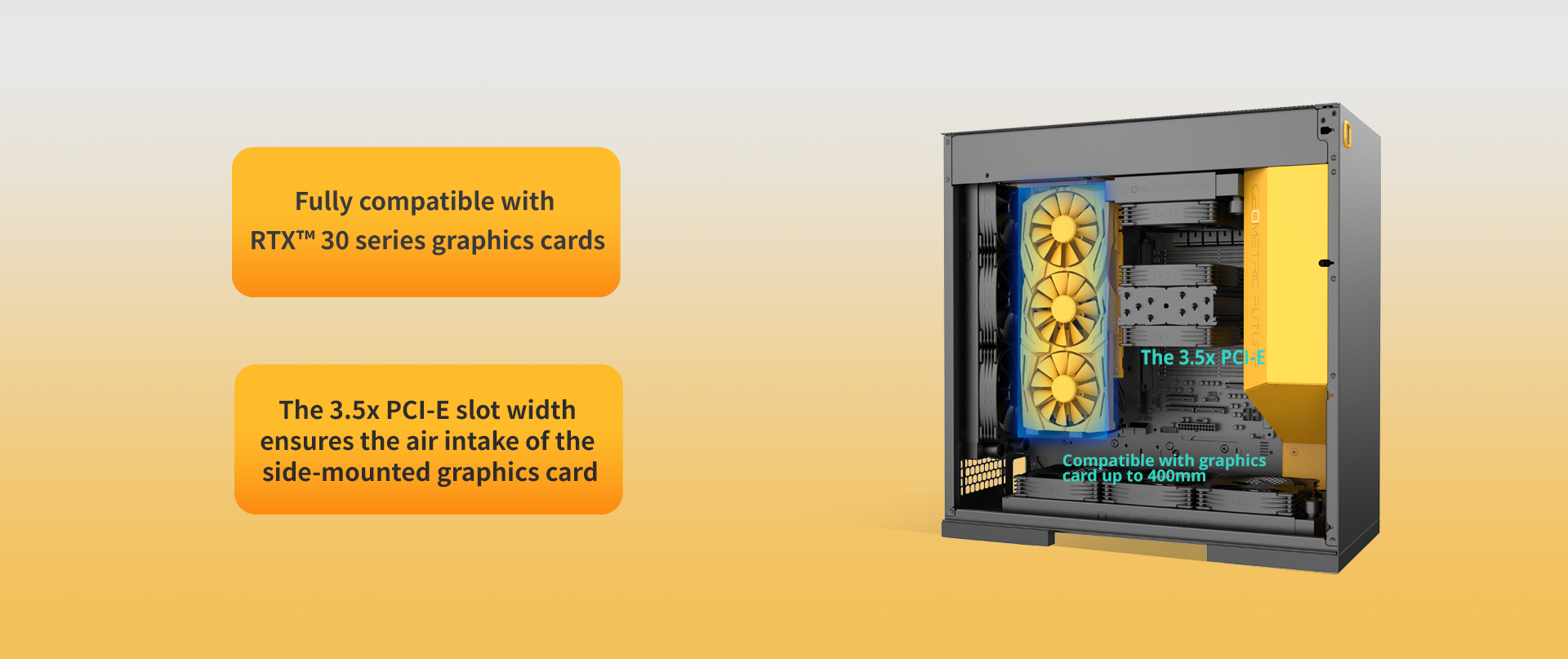

Expansion Slots( Maximum Space) PCI-E x 7:Length<400mm(No Cooling of bottom) / Width <175mm
Lateral PCI-E x 3:Length<412mm(No Cooling of bottom) / Width <150mm ( CPU Heatsink Height<105mm) / Height<65mm

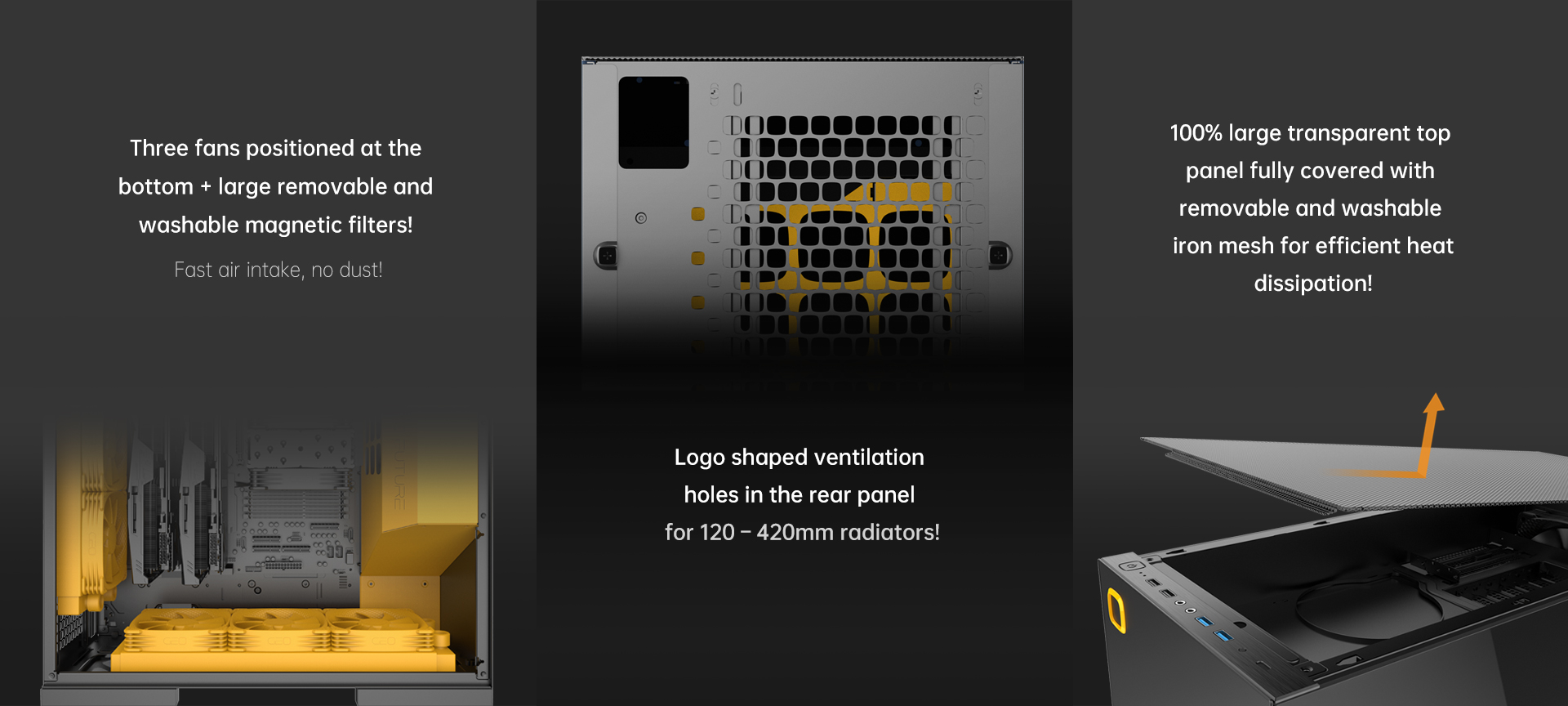

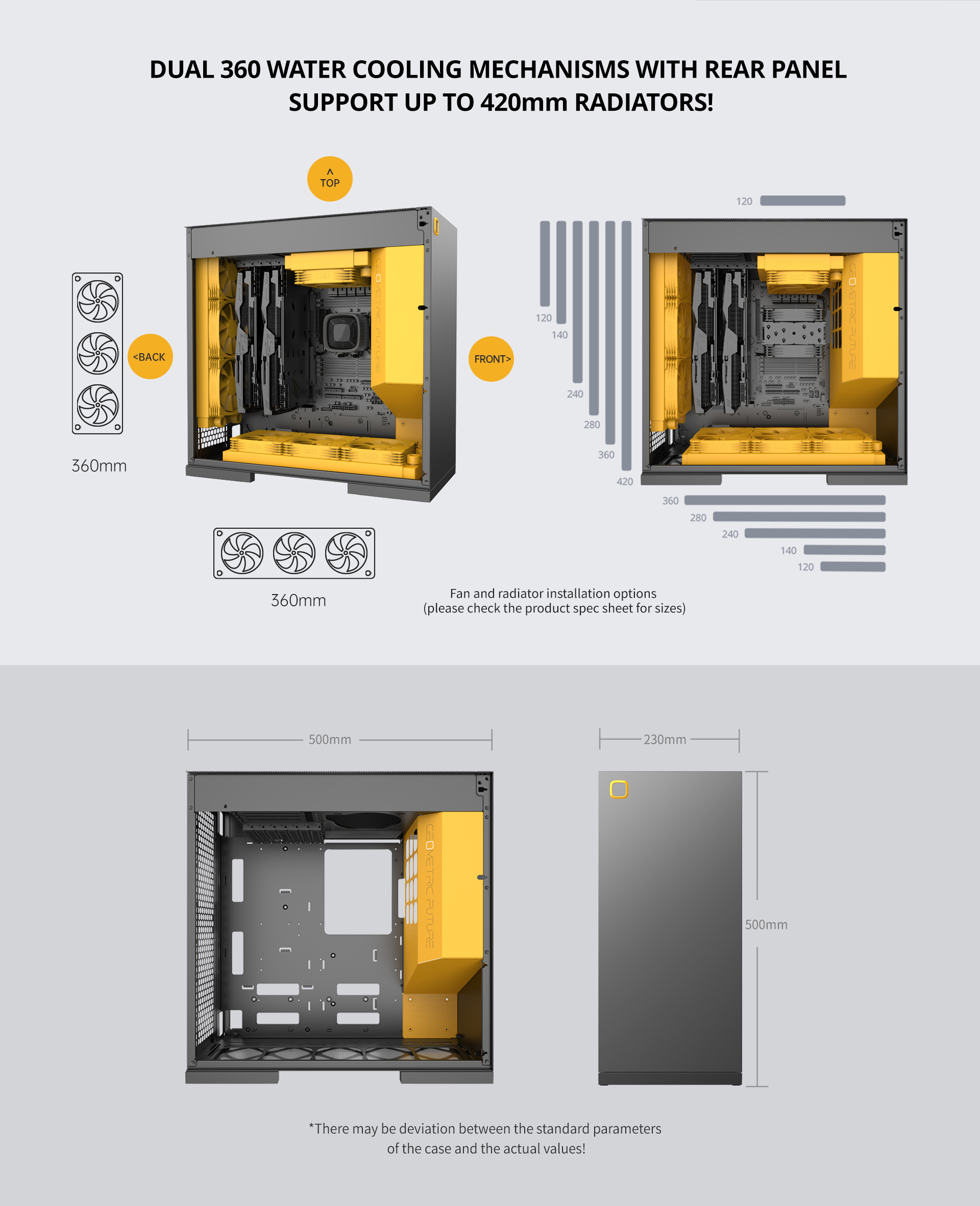

Thermal Solution

Top : 120mm Fan x 1120mm Radiator (Optional)

Rear : 120/140mm Fan x 3 420mm Radiator( Length<470mm / Thickness < 55mm )(Optional)

360/280mm Radiator ( Length<400mm / Thickness < 65mm )(Optional)

Bottom : 120/140mm Fan x 3 360/280mm Radiator ( Length < 485mm )(Optional)

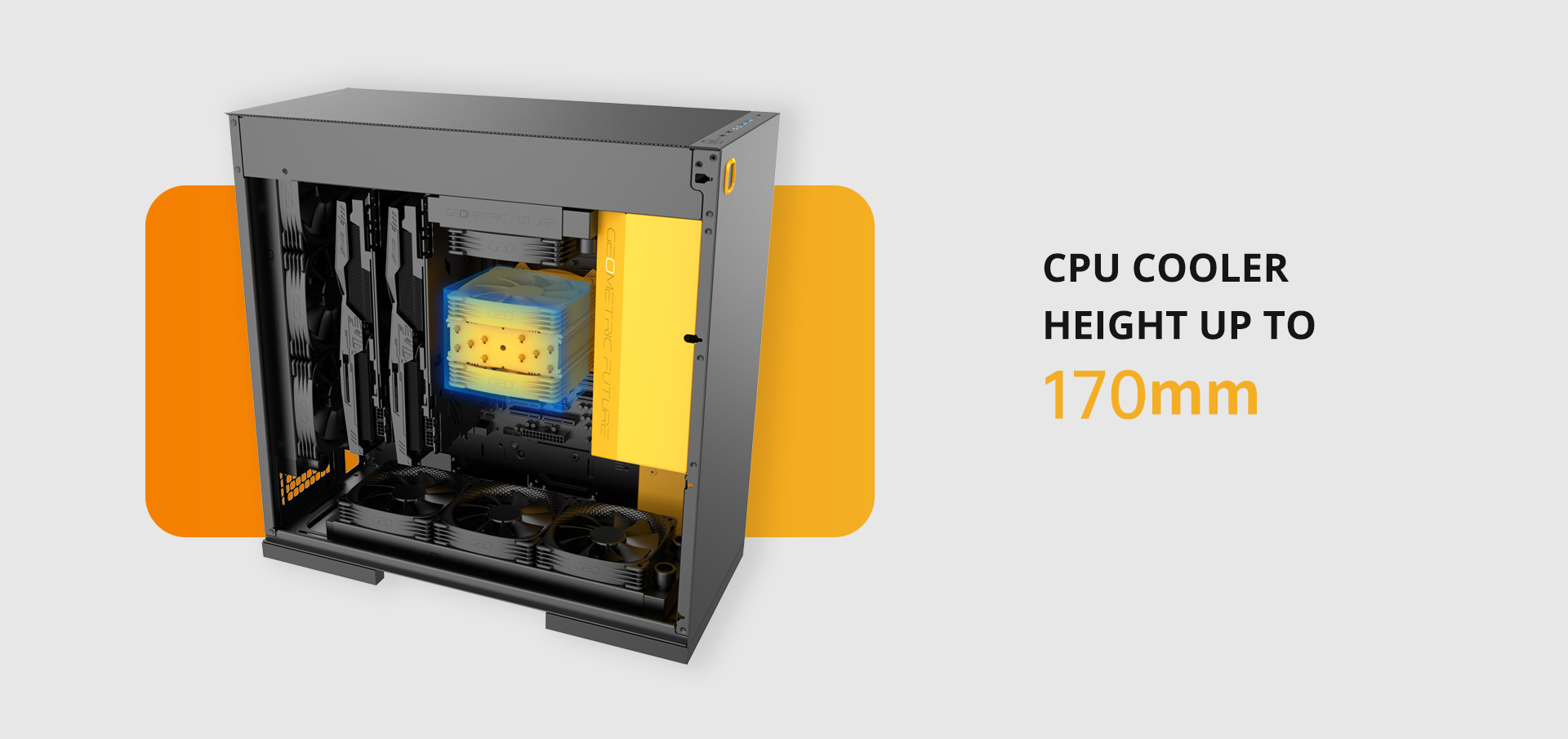

CPU Heatsink

Height<170mm
