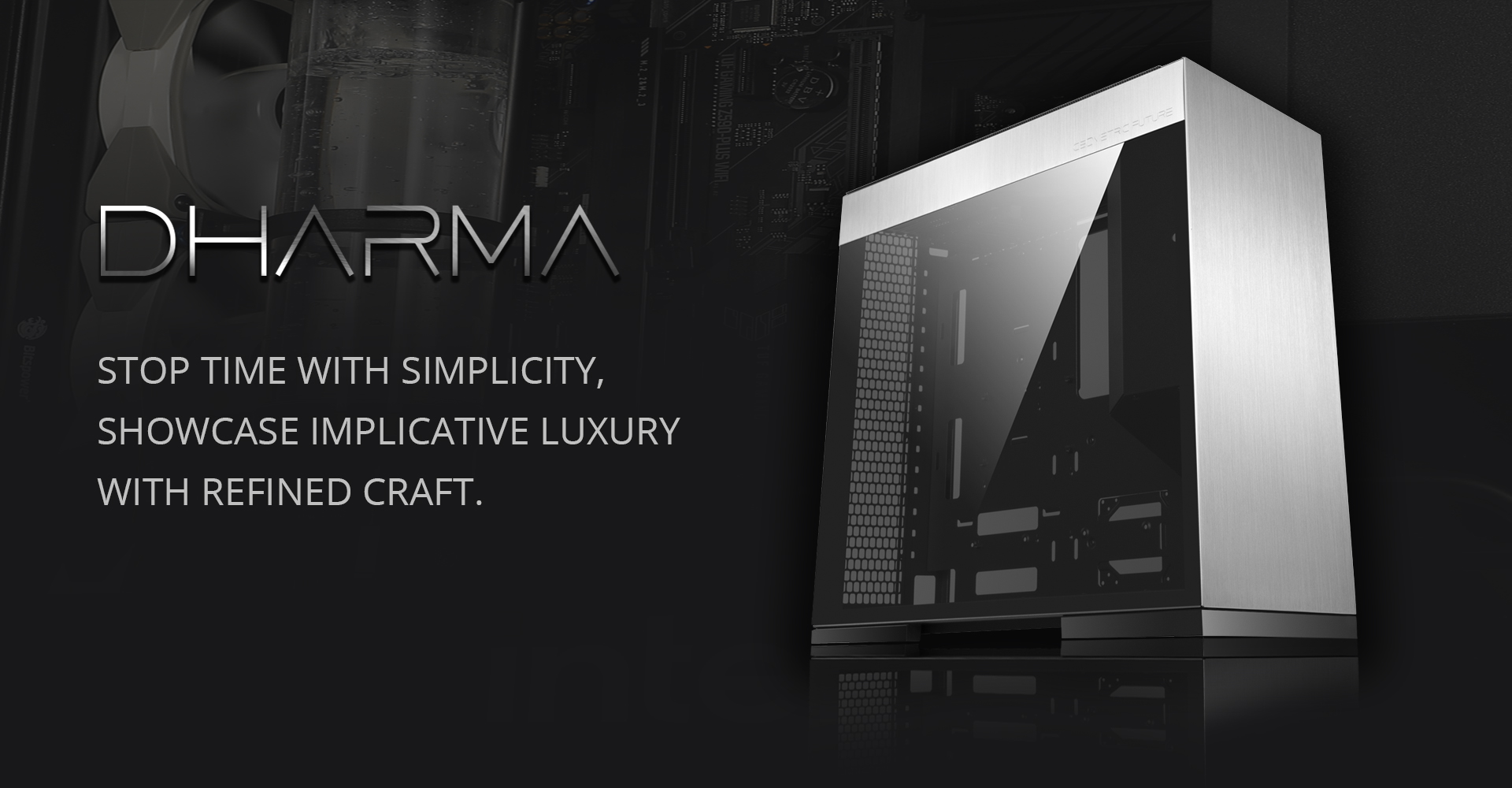

Dharma
Stop time with simplicity, showcase implicative luxury with refined craft.

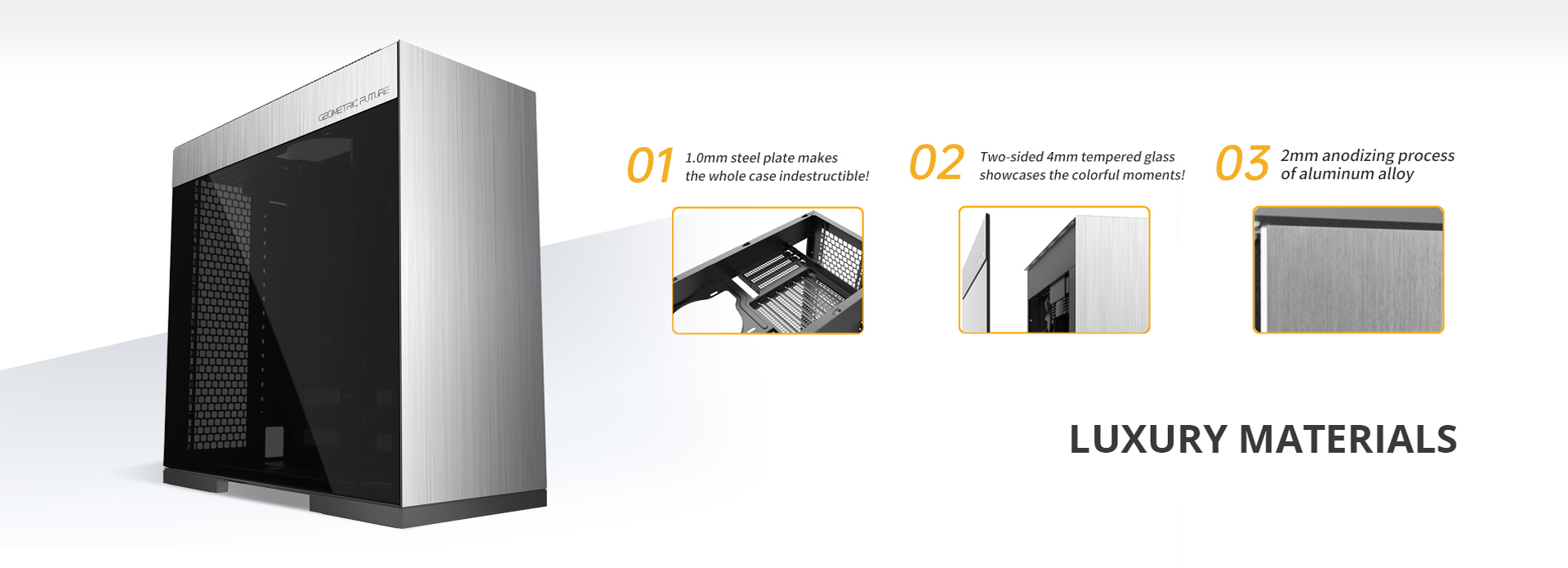

The whole frame is made of 1.0mm steel and is indestructible!
4mm toughened glass on both sides showcases the colorful moments!
IO panel cut out by carbide drill, craftsmanship in details!

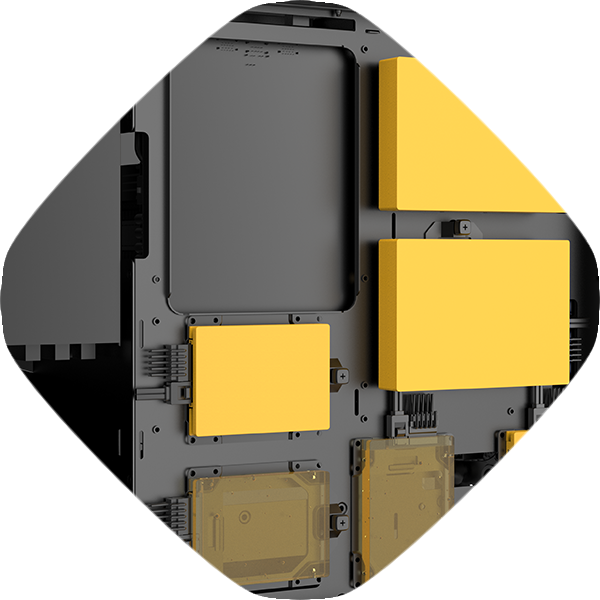

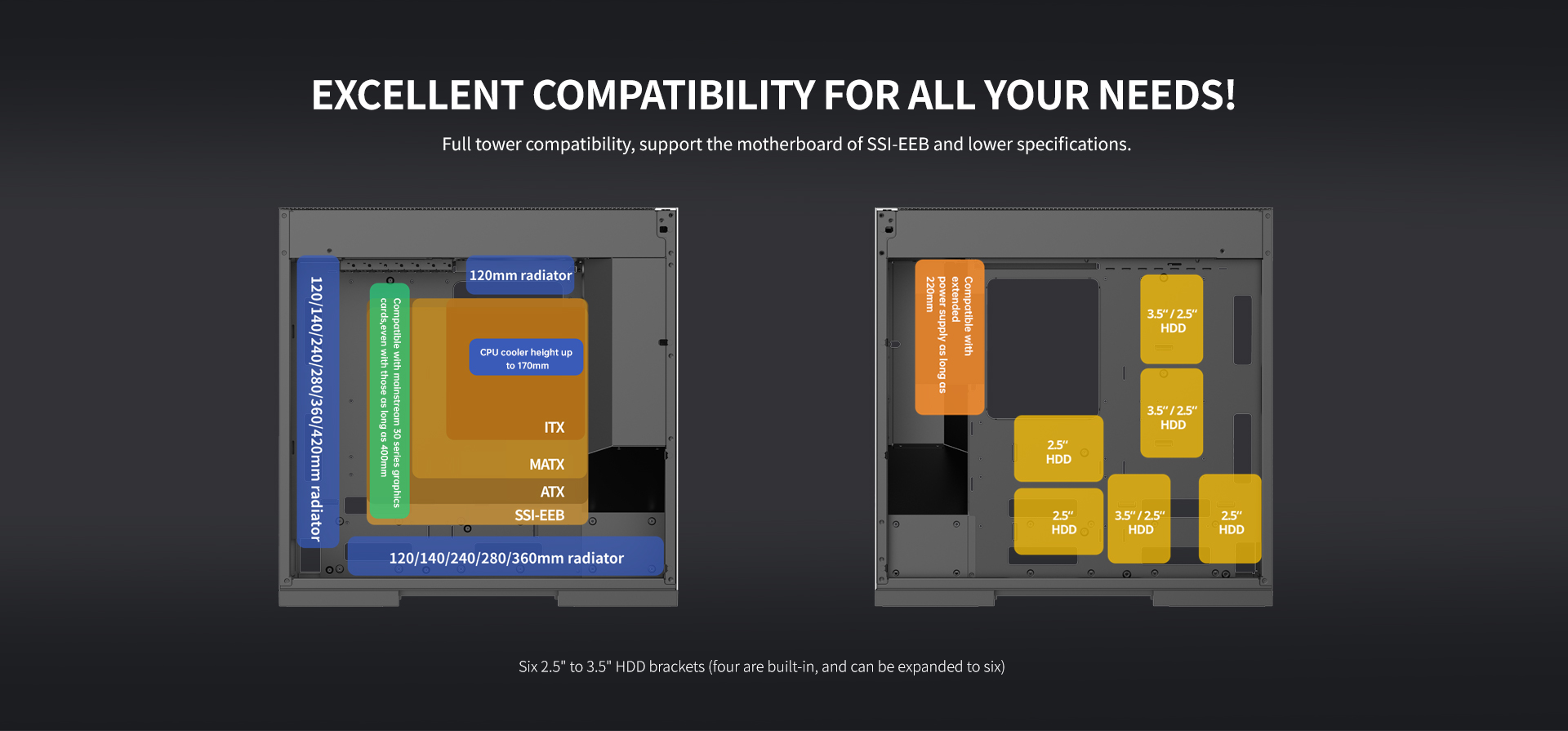

Six 2.5" to 3.5" HDD brackets (four are built-in, and can be expanded to six) can be mounted,and this is 50% higher than products at the same level

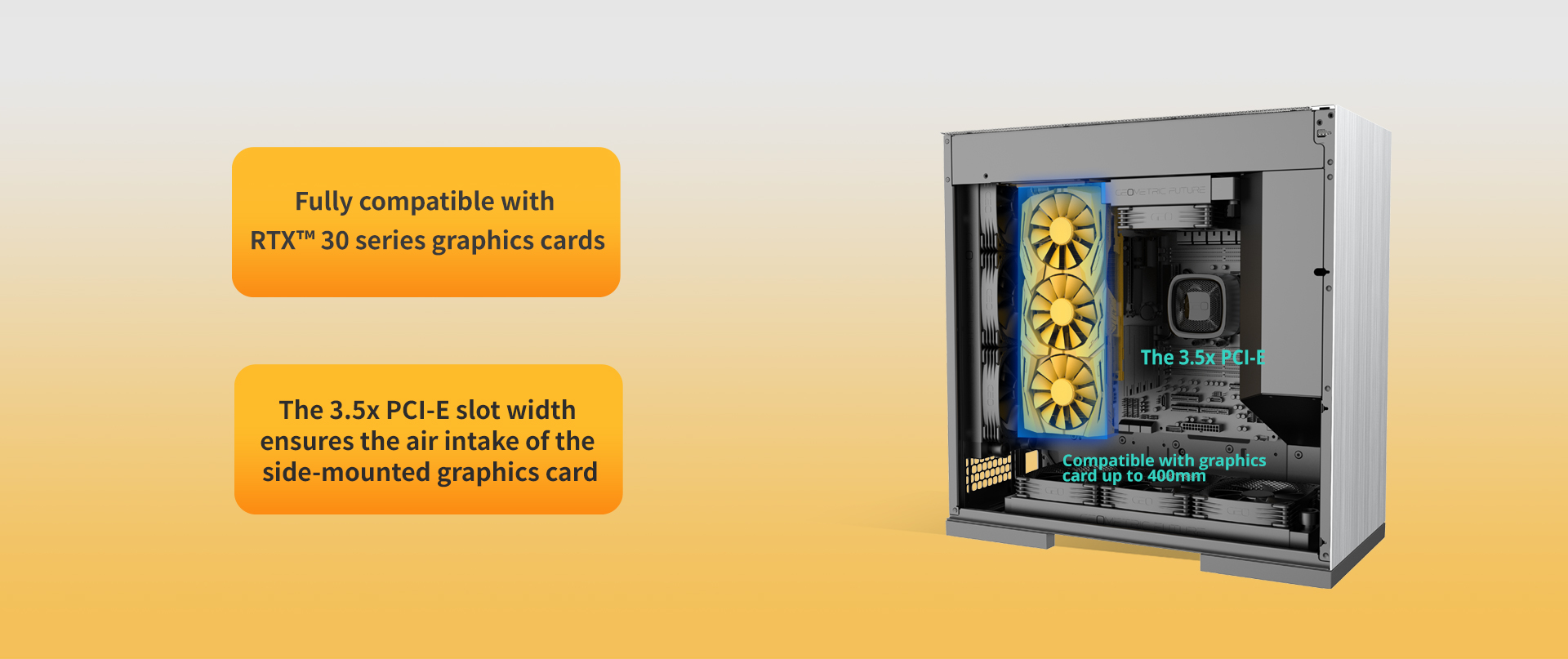

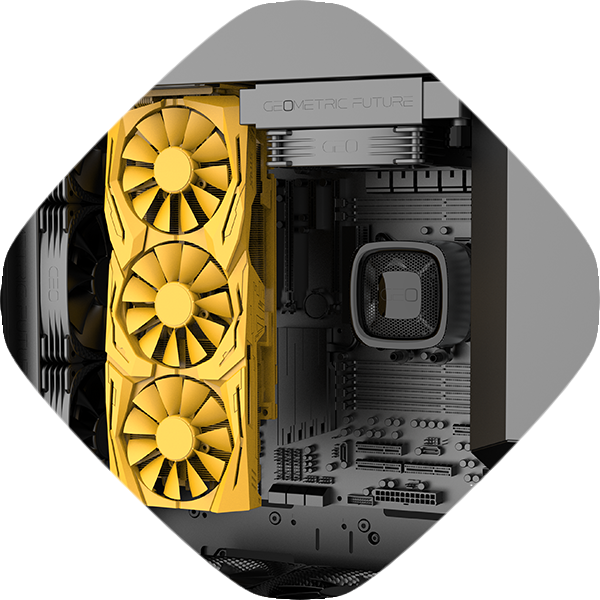

The 3.5x PCI-E slot width ensures the air intake of the side-mounted graphics card, and the airflow space is 50% more compared with the products at the same level

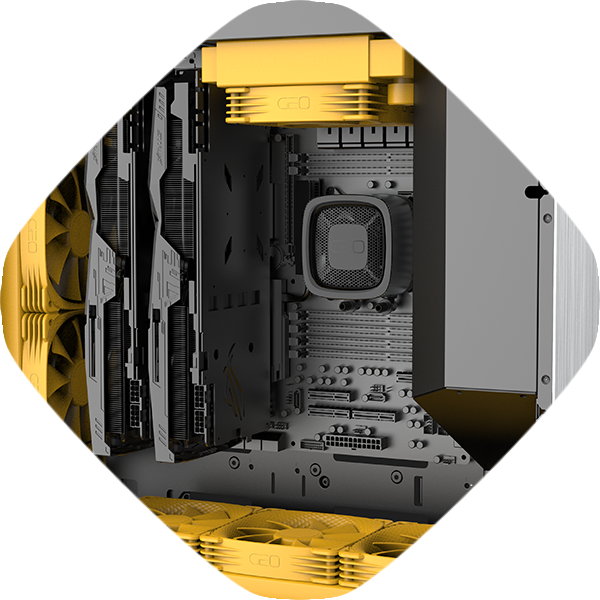

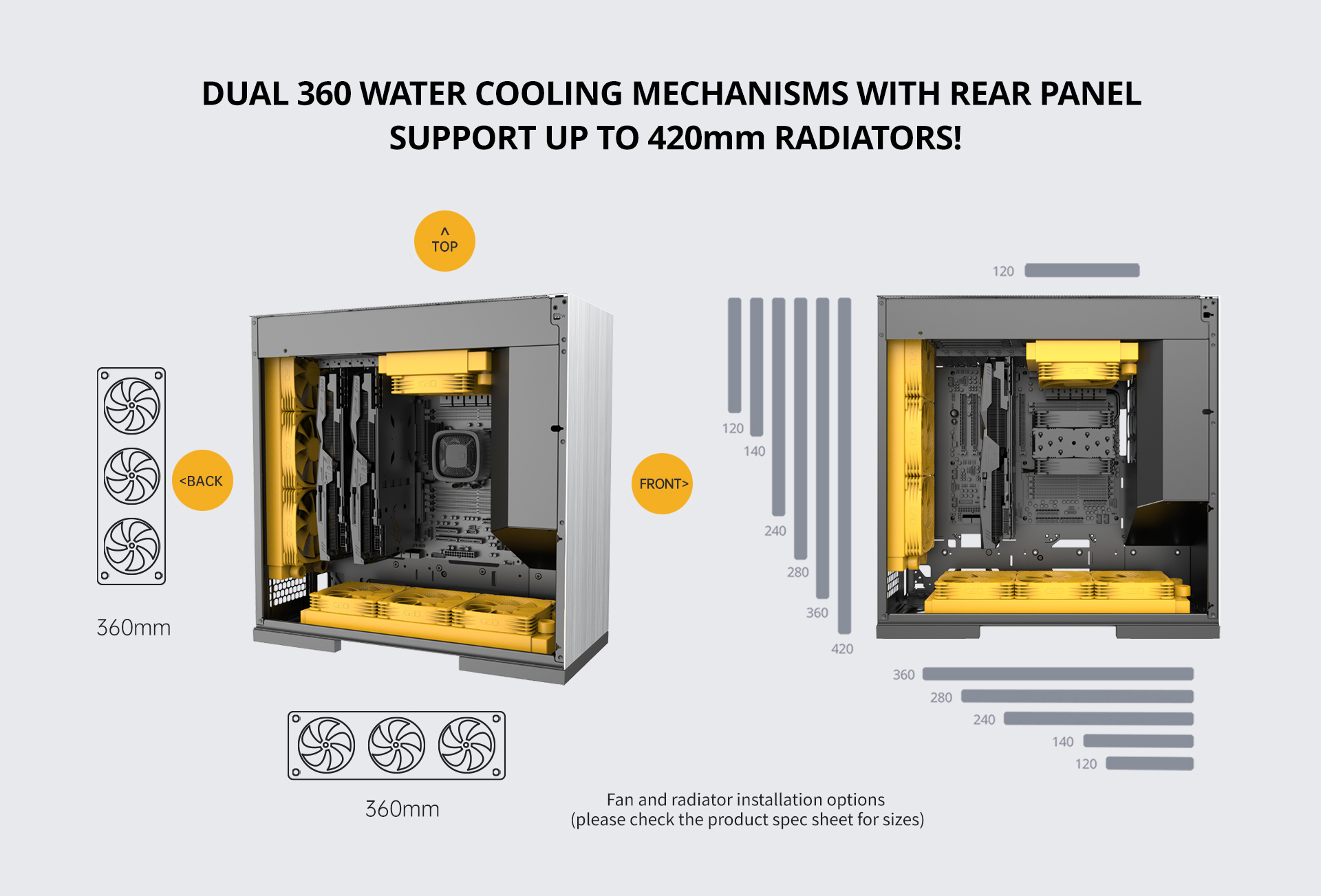

Double 360mm+120mm radiators, the rear panel can install 420mm radiator, and the heat dissipation and capacity expansion are 40% more than products at the same level
| Case Type | Mid Tower |
| Material | Steel T1.0 ，Tempered Glass T4.0 |

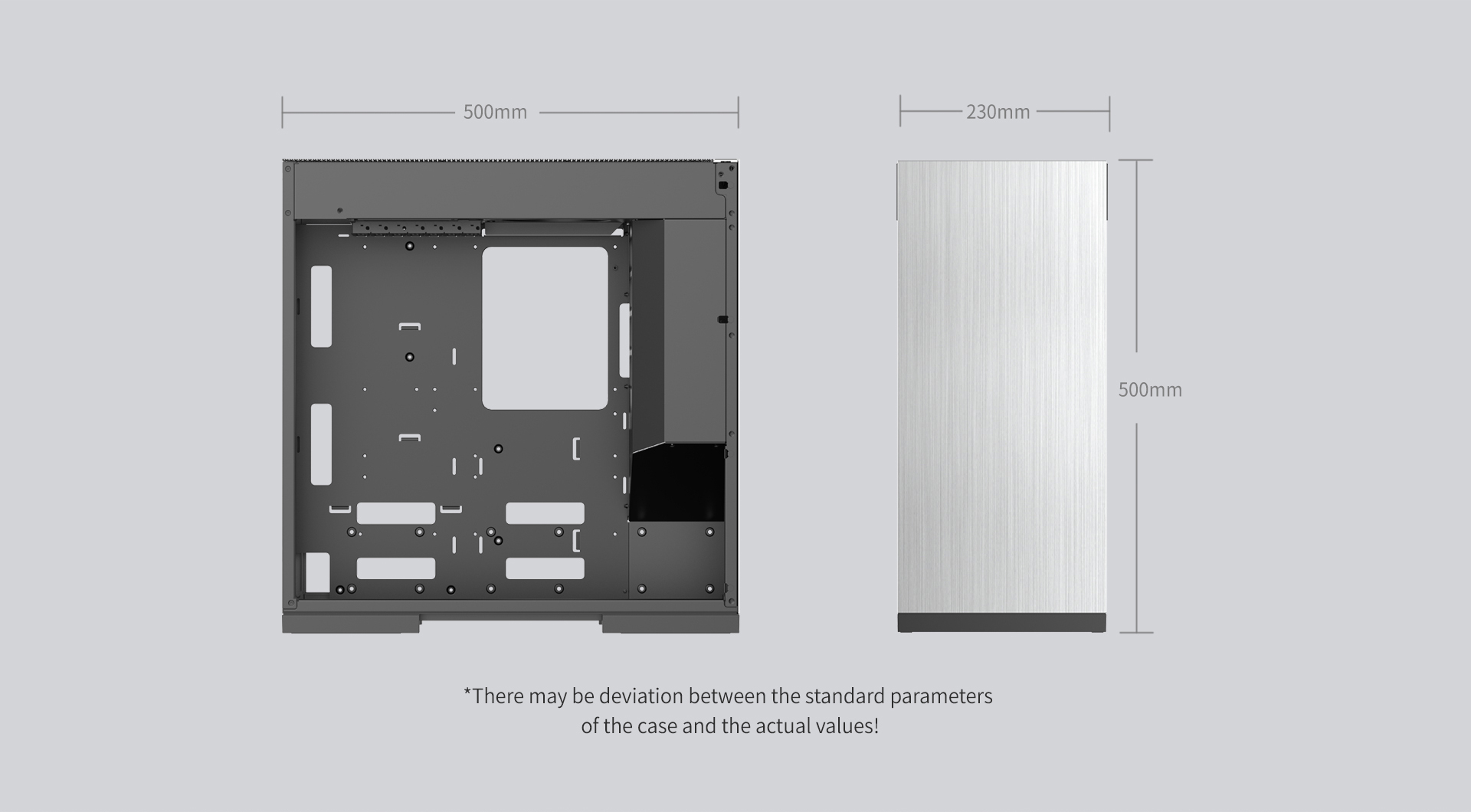

| Product Dimension ( H x W x D ) | 500×230×500mm, 19.7"×9.1"×19.7" |
| Drive Bay | Max : 3x3.5'', 3x2.5''/ 6x2.5''tray |
| M/B Compatibility | E-ATX（12"×13"）, ATX, Micro-ATX, Mini-ITX |
| Power Supply | PSII : ATX 12V（Length < 220 mm） |

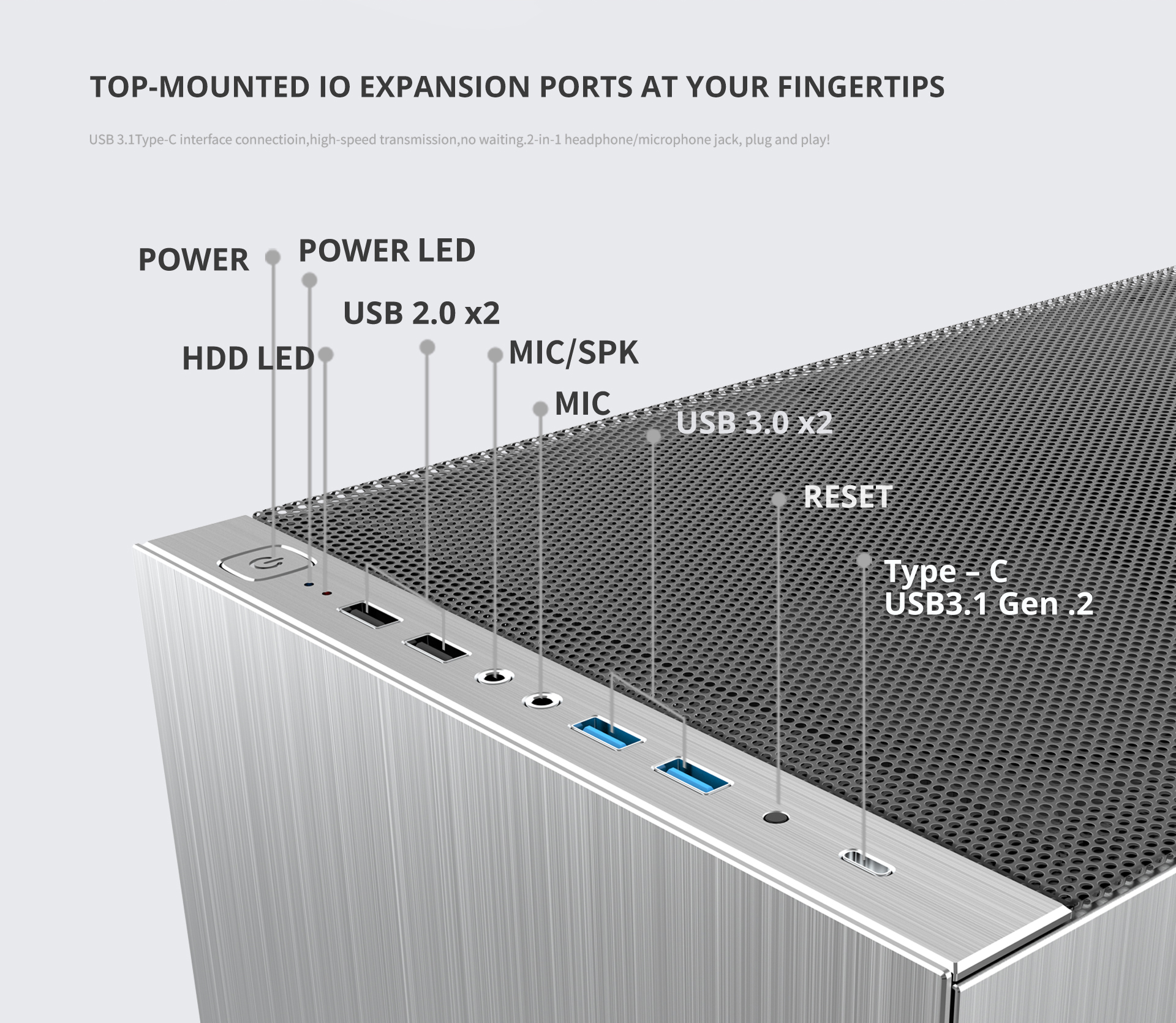

| I/O Ports | USB 3.0 x 2 , USB 2.0 x 2 , HD Audio（CTIA-SPK/MIC ) , Type – C USB3.1 Gen .2 |
| Expansion Slots( Maximum Space） |
PCI-E x 7：Length<400mm（No Cooling of bottom） / Width <175mm Lateral PCI-E x 3：Length<412mm（No Cooling of bottom） / Width <150mm （ CPU Heatsink Height<105mm) / Height<65mm |

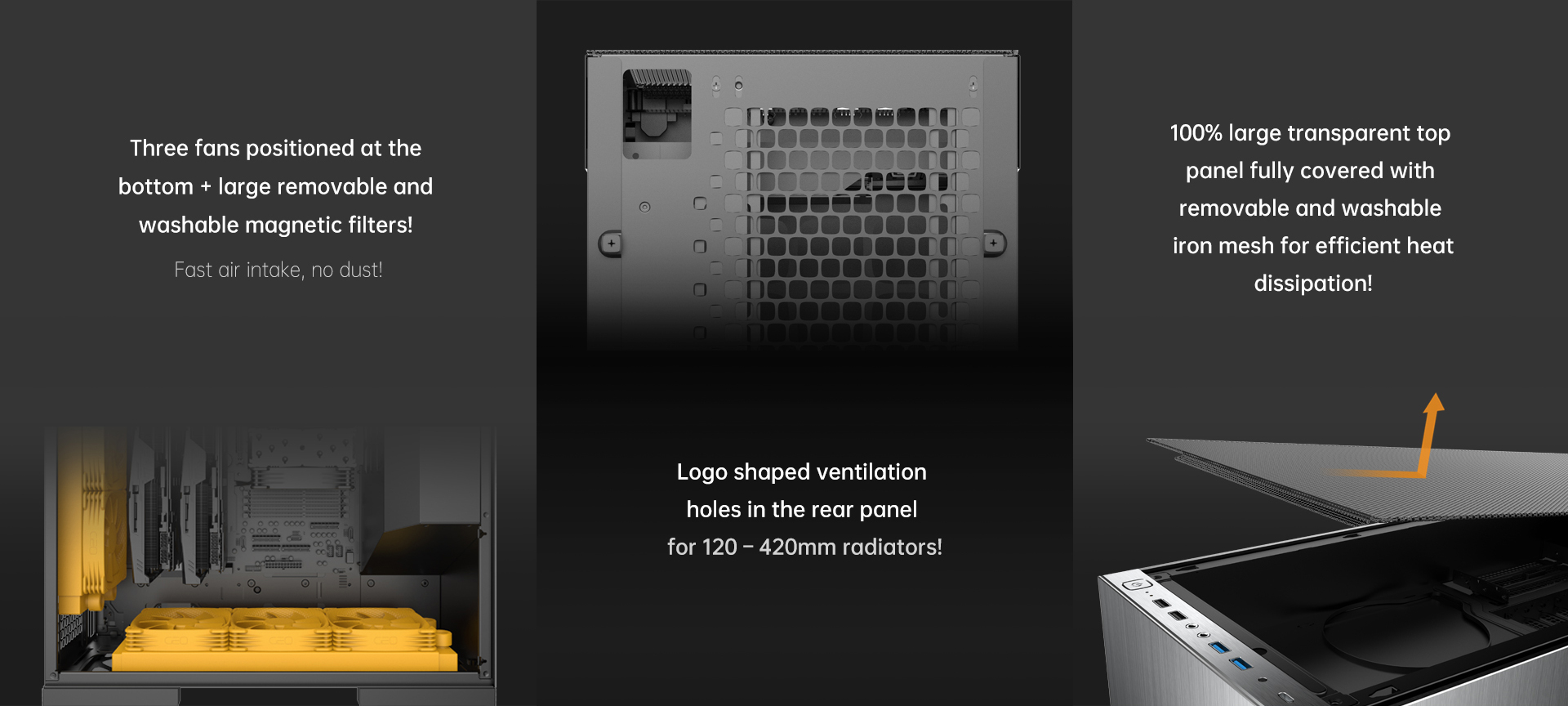

| Thermal Solution | Top : 120mm Fan x 1120mm Radiator (Optional) Rear : 120/140mm Fan x 3 420mm Radiator( Length<470mm / Thickness < 55mm ) (Optional) 360/280mm Radiator ( Length<400mm / Thickness < 65mm ) (Optional) Bottom : 120/140mm Fan x 3 360/280mm Radiator ( Length < 485mm ) (Optional) |

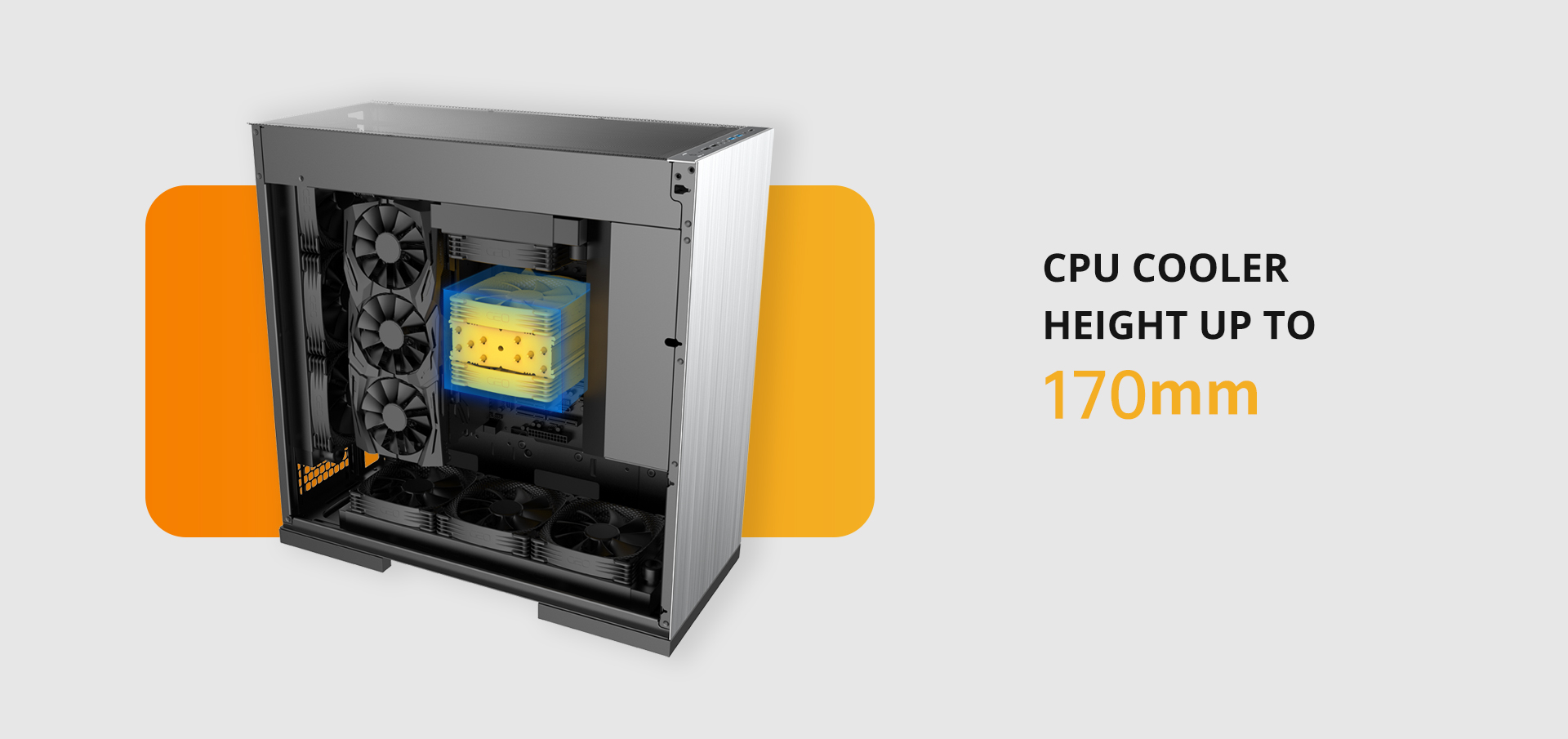

| CPU Heatsink | Height<170mm |
