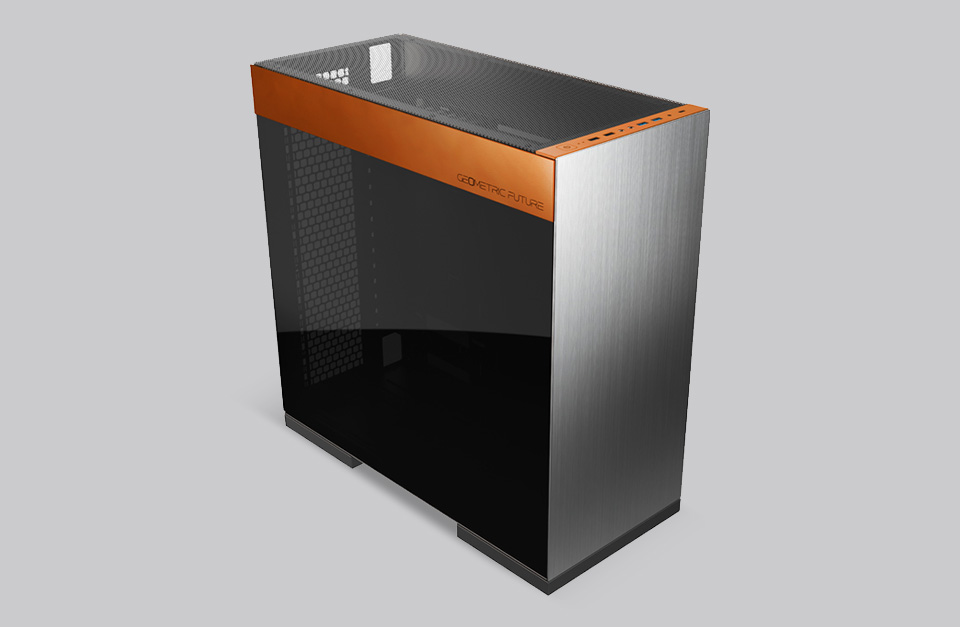

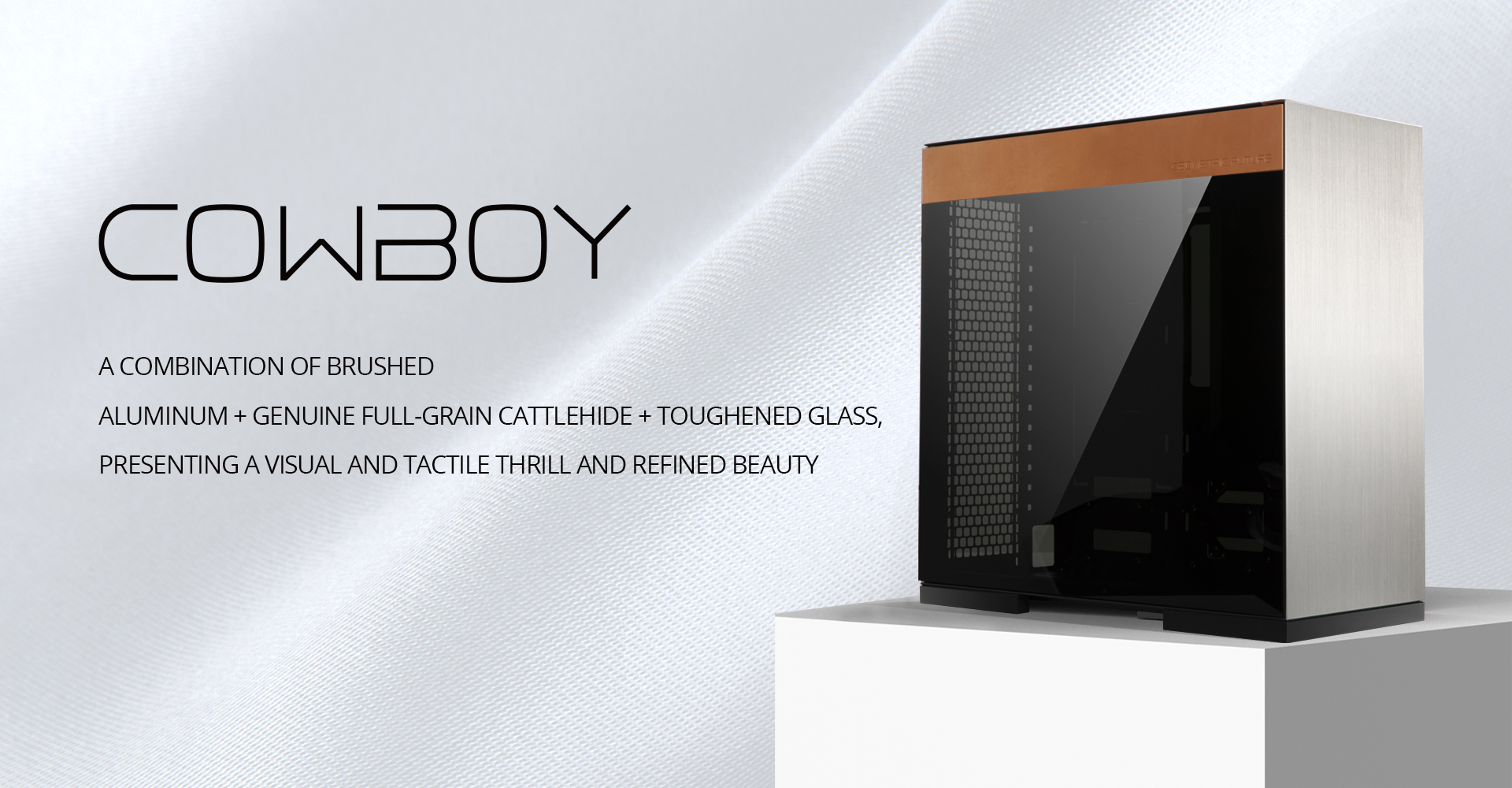

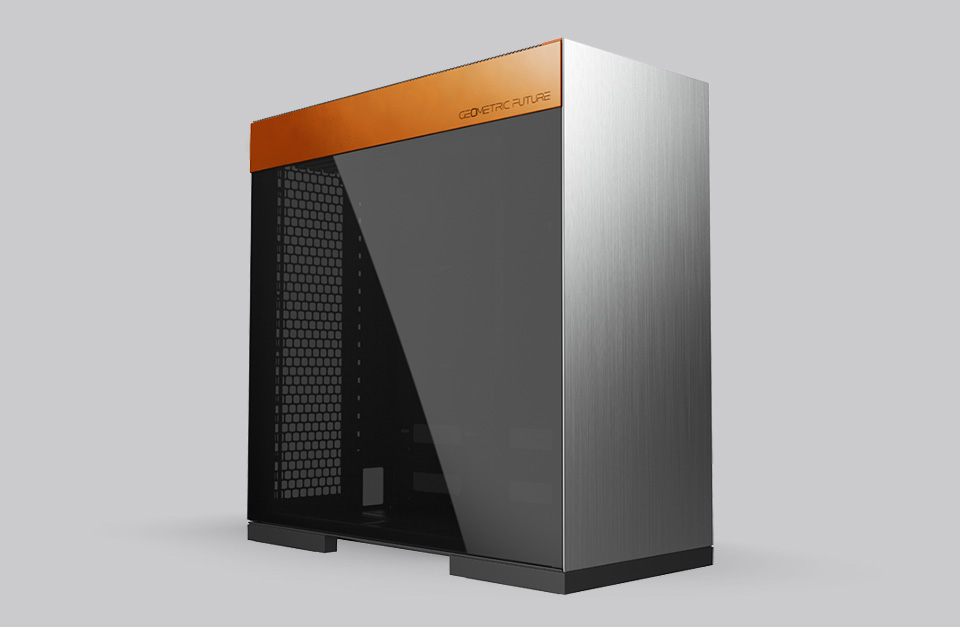

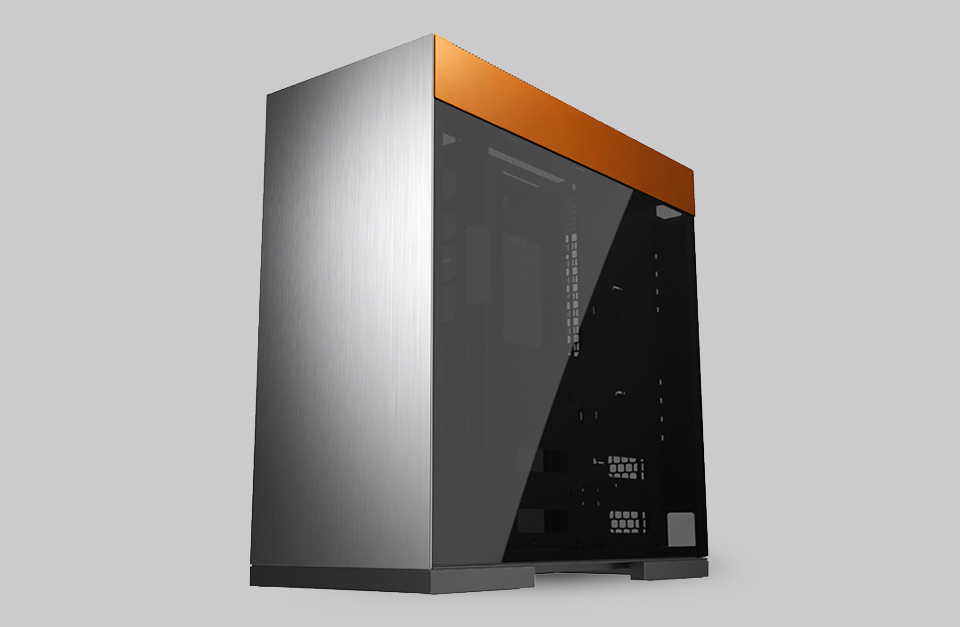

CowBoy

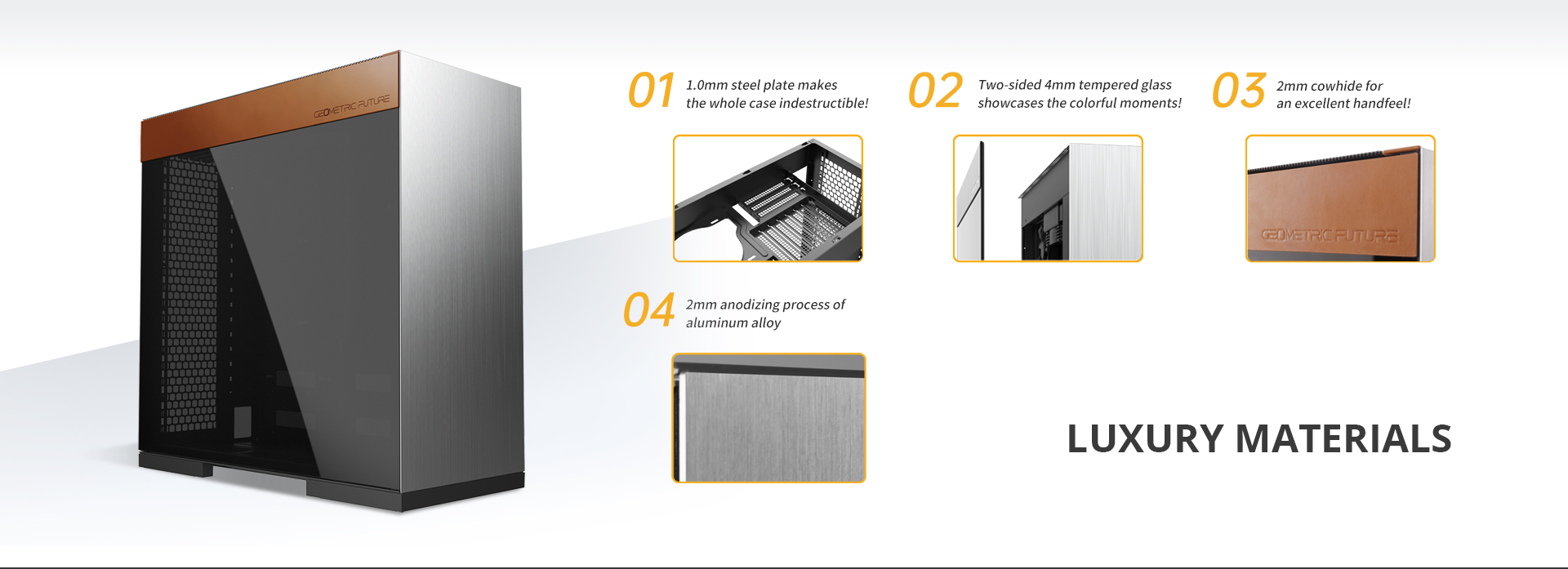

A combination of brushed aluminum + genuine cowhide + toughened glass, presenting a visual and tactile thrill and refined beauty.

Color
Download

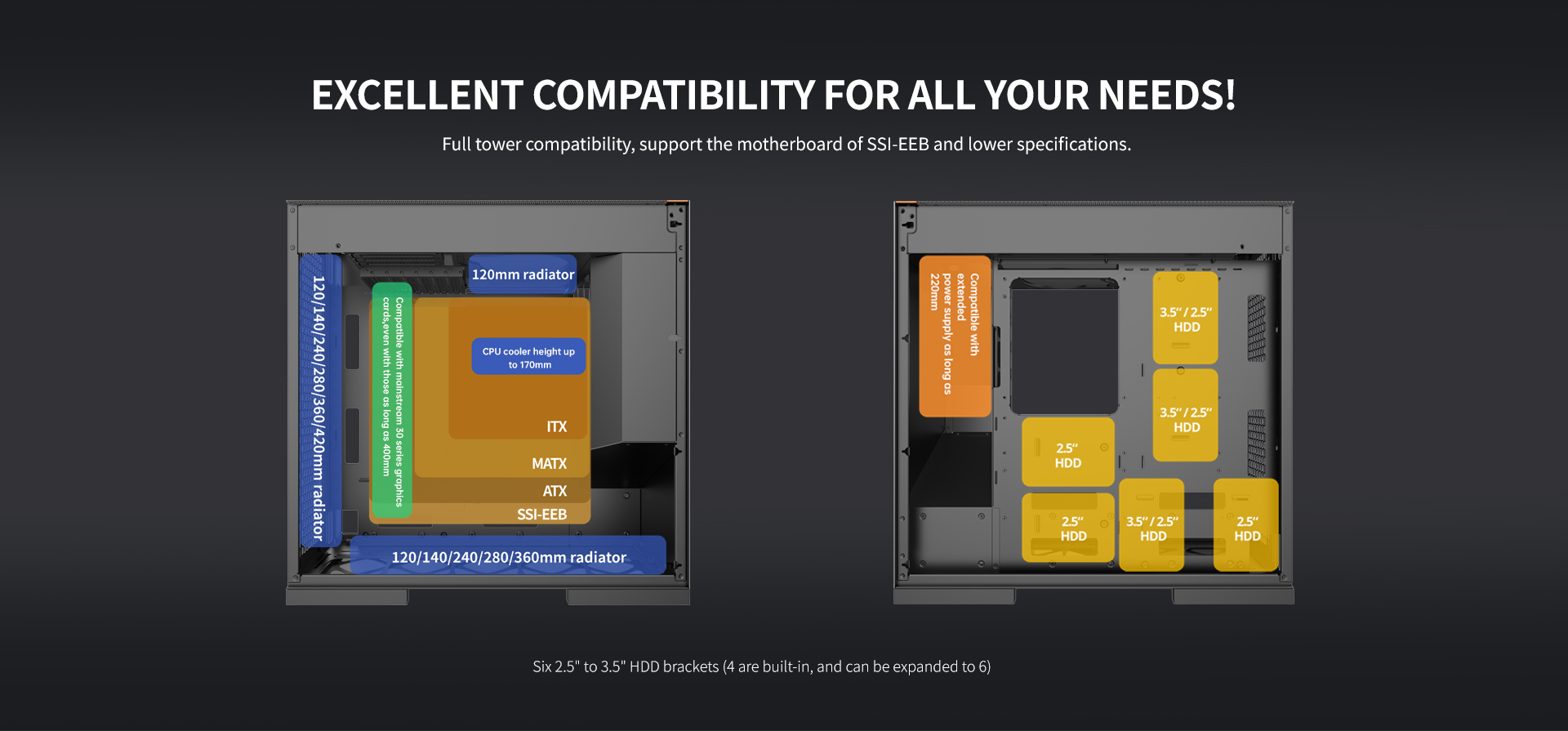

  • Six 2.5" to 3.5" HDD brackets (four are built-in, and can be expanded to six) can be mounted,and this is 50% higher than products at the same level

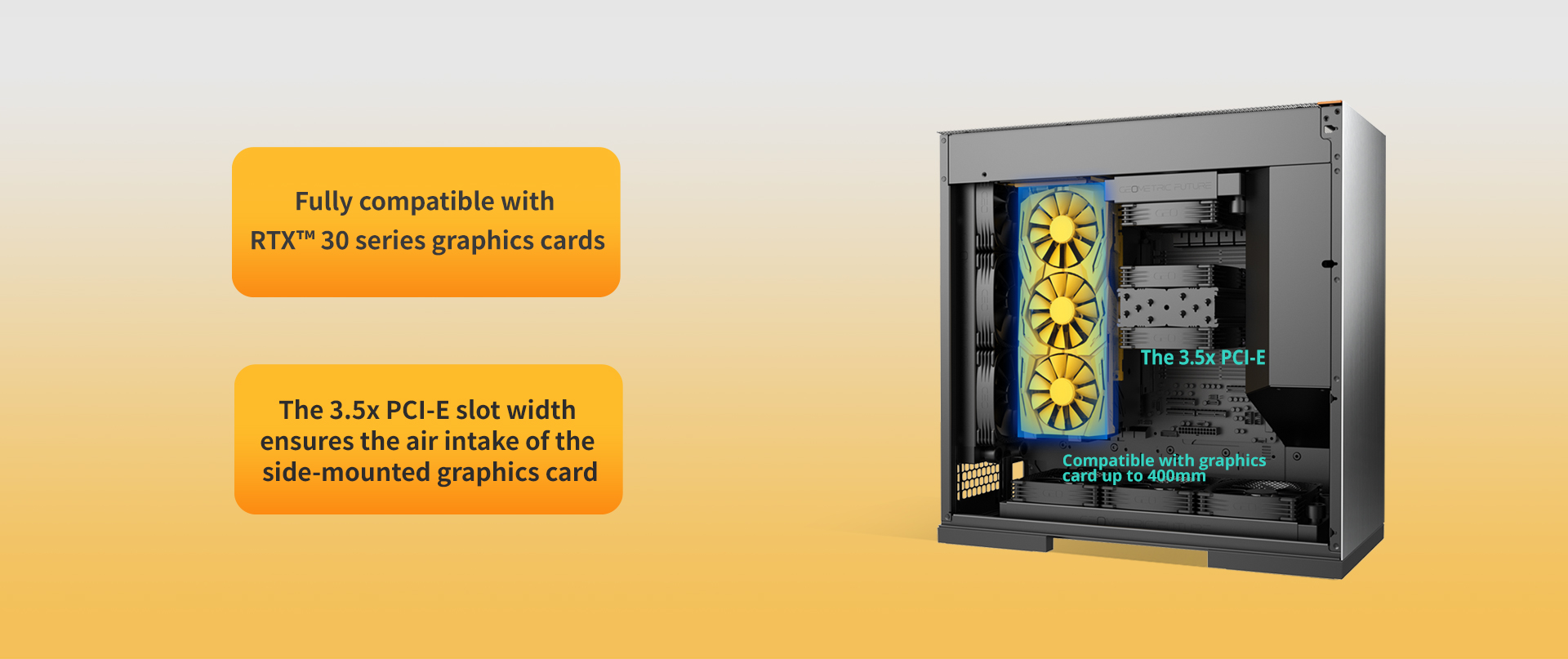

  • The 3.5x PCI-E slot width ensures the air intake of the side-mounted graphics card, and the airflow space is 50% more compared with the products at the same level

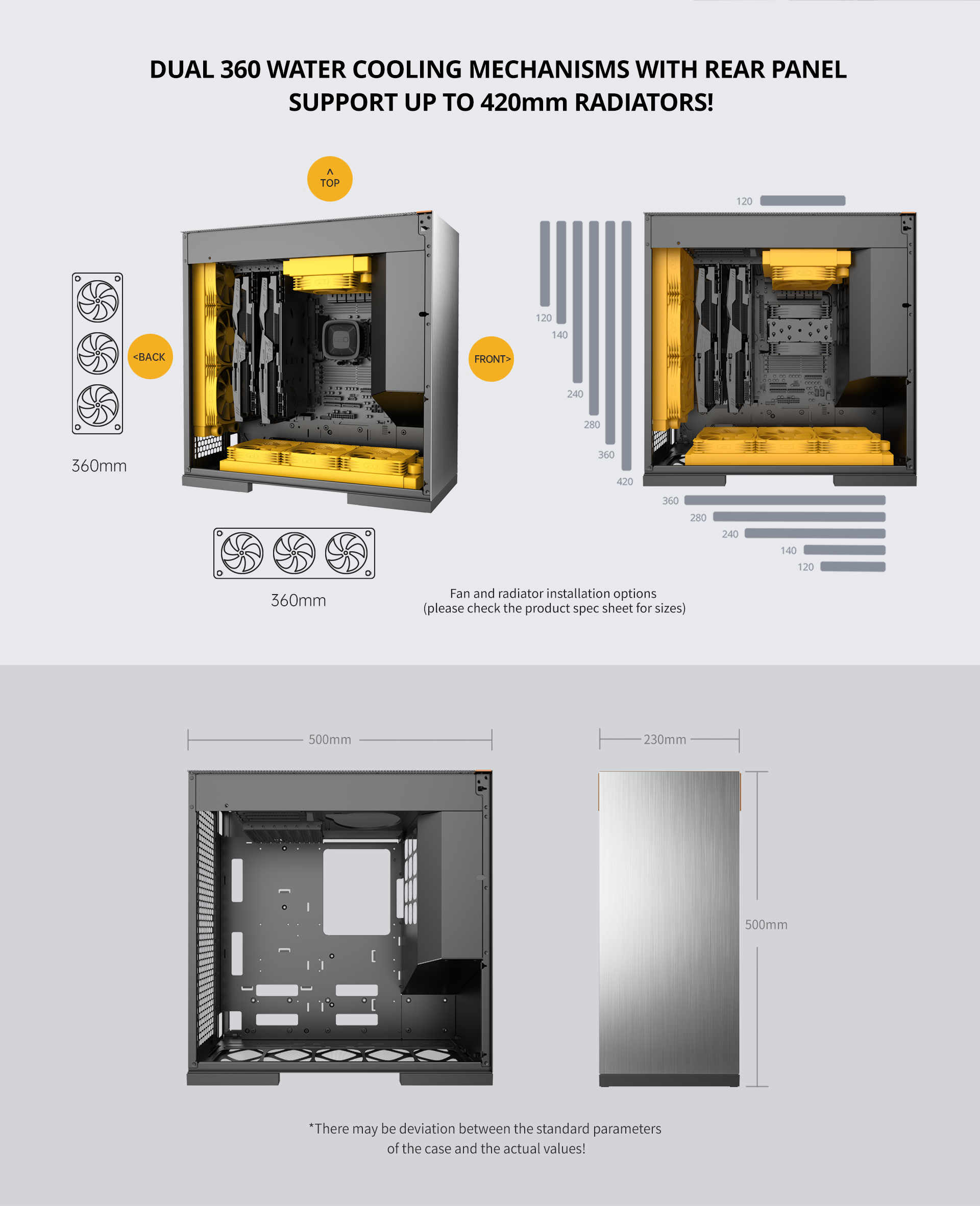

  • Double 360mm+120mm radiators, the rear panel can install 420mm radiator, and the heat dissipation and capacity expansion are 40% more than products at the same level

Specifications
Case Type Mid Tower
Material Steel T1.0 ,Tempered Glass T4.0
Product Dimension ( H x W x D ) 500×230×500mm, 19.7"×9.1"×19.7"
Drive Bay Max : 6×3.5"/2.5" tray
M/B Compatibility

E-ATX(12"×13"), ATX, Micro-ATX, Mini-ITX

Power Supply PSII : ATX 12V(Length < 220 mm)

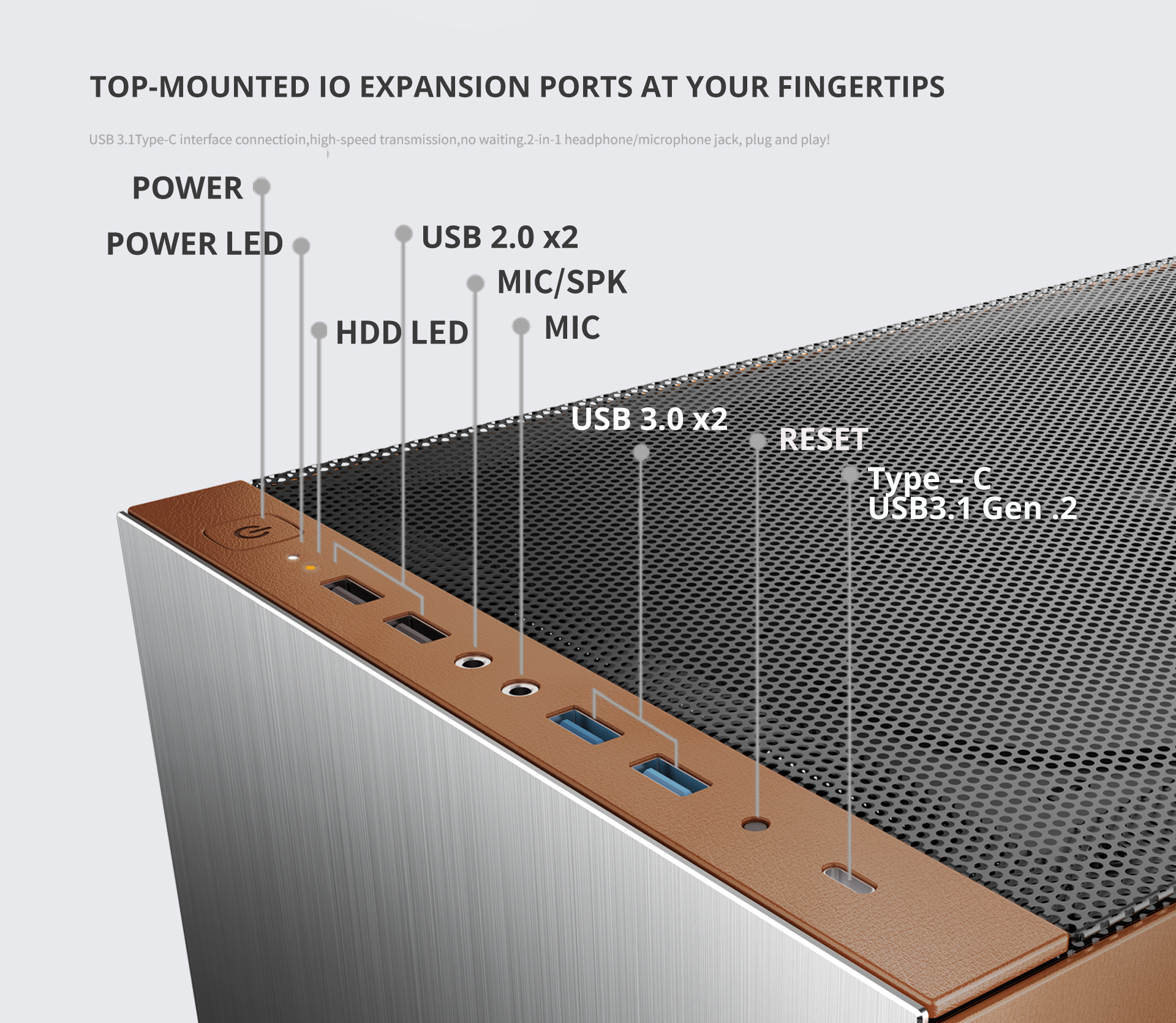

I/O Ports USB 3.0 x 2 , USB 2.0 x 2 , HD Audio(CTIA-SPK/MIC ) , Type – C USB3.1 Gen .2
Expansion Slots( Maximum Space) PCI-E x 7:Length <400mm(No Cooling of bottom) / Width <175mm
Lateral PCI-E x 3:Length <412mm(No Cooling of bottom) / Width <150mm ( CPU Heatsink Height<105mm) /  Height<65mm
Thermal Solution

Top : 120mm Fan x 1120mm Radiator (Optional)

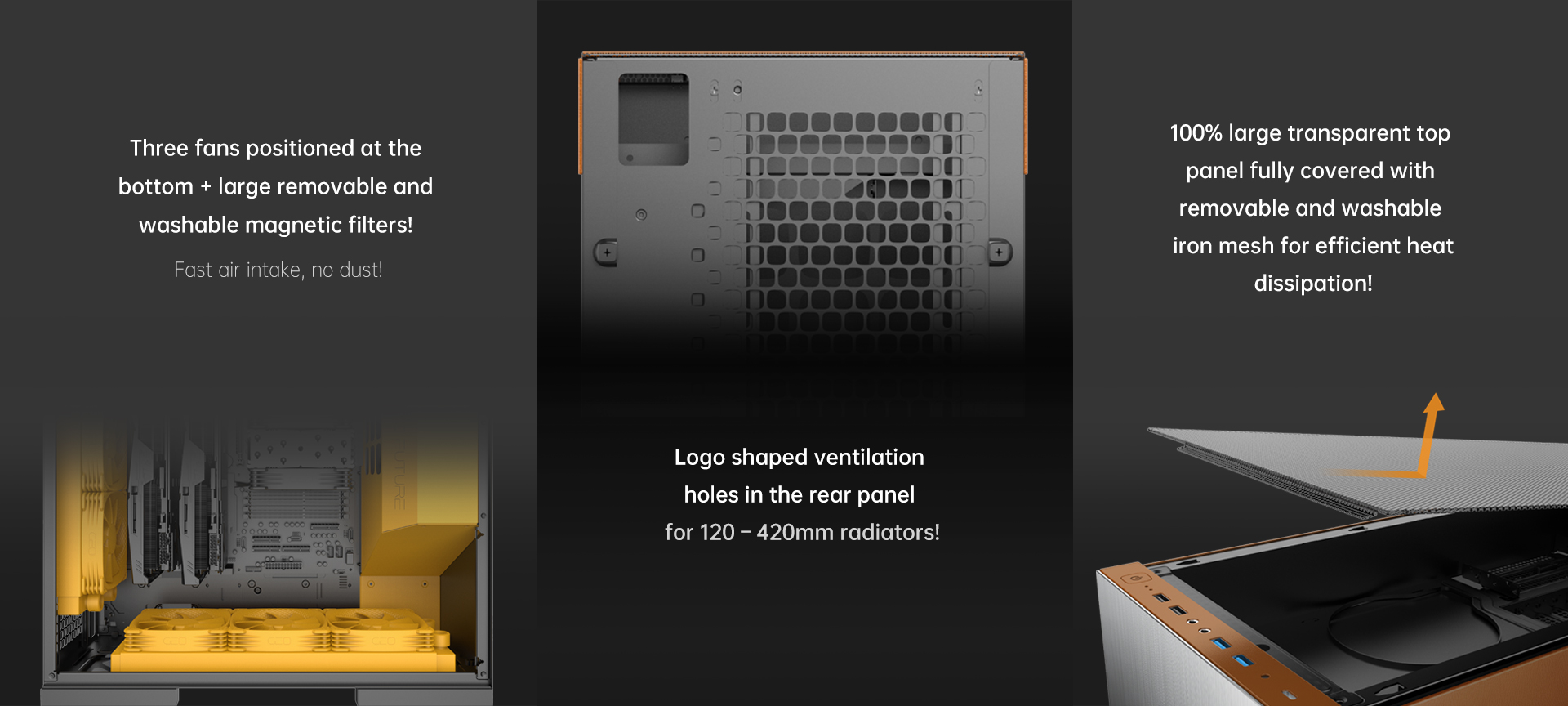

Rear : 120/140mm Fan x 3 420mm Radiator( Length <470mm / Thickness < 55mm )(Optional)

360/280mm Radiator ( Length <400mm / Thickness < 65mm )(Optional)

Bottom : 120/140mm Fan x 3 360/280mm Radiator ( Length < 485mm )(Optional)

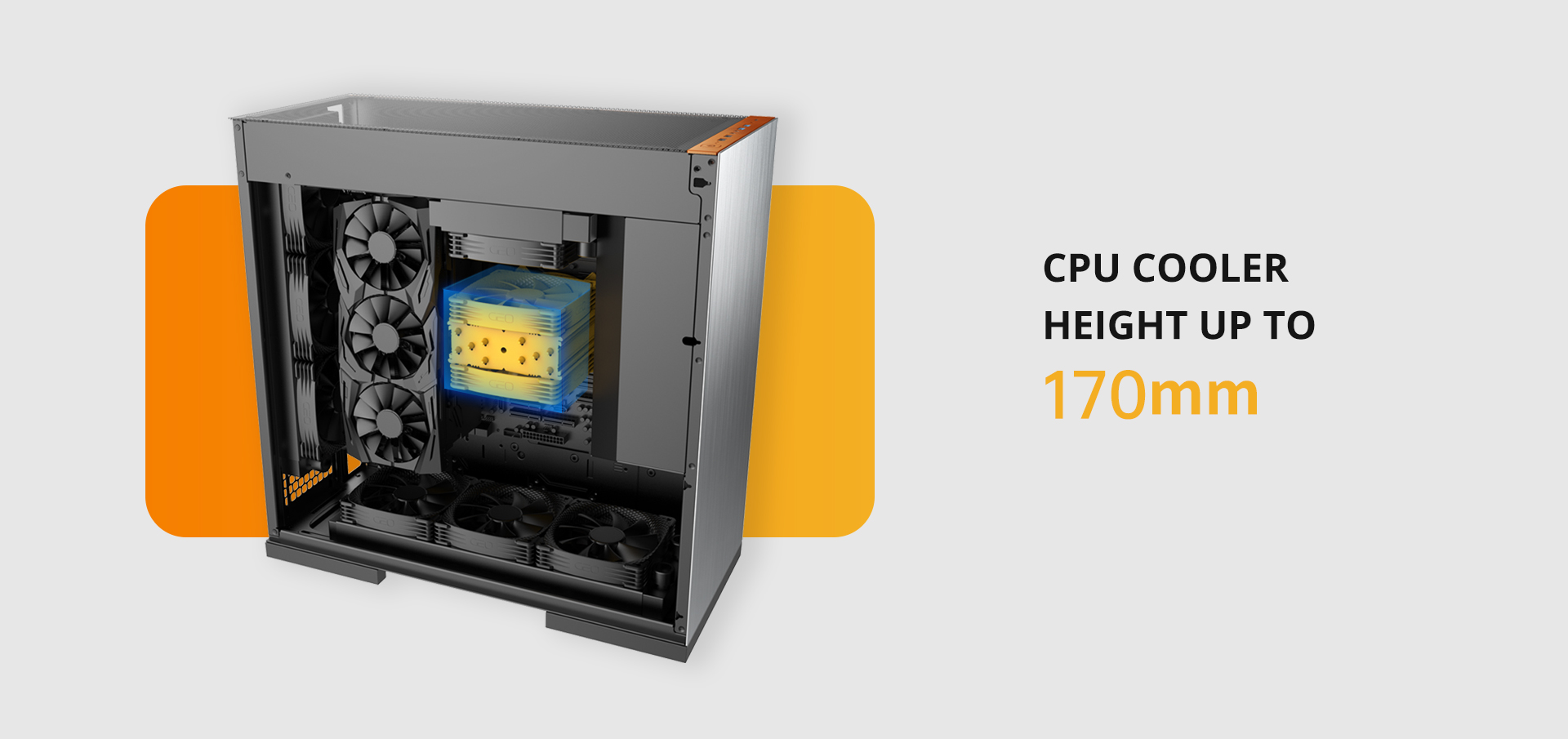

CPU Heatsink

Height<170mm
