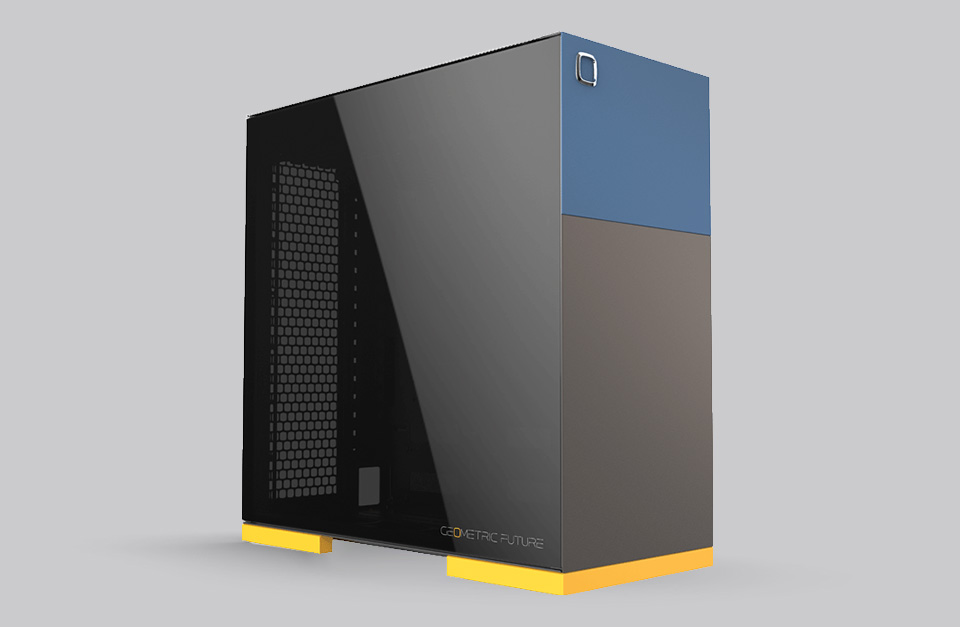

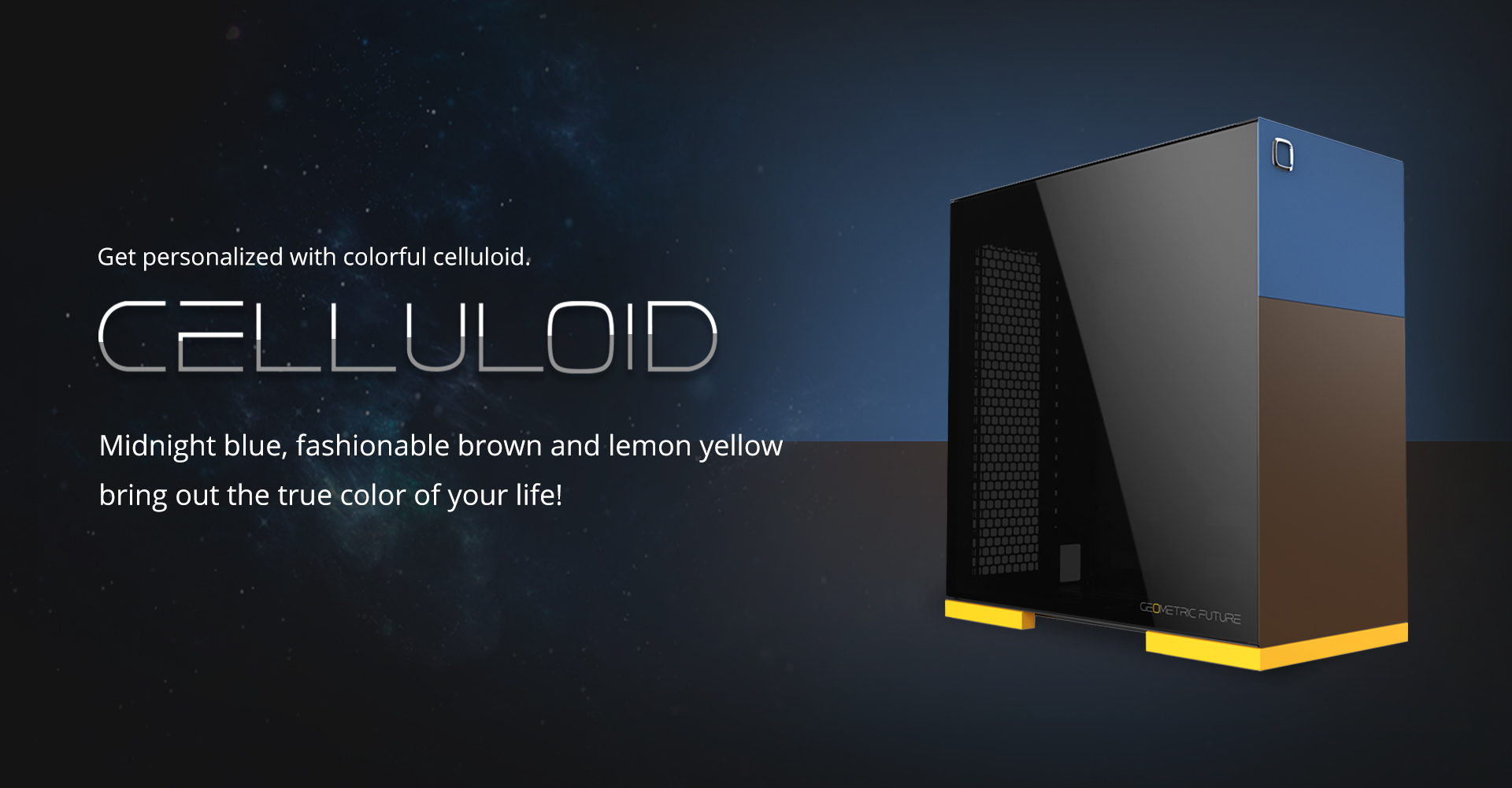

Celluloid
Get personalized with colorful celluloid.
Midnight blue, fashionable brown and lemon yellow bring out the true color of your life!

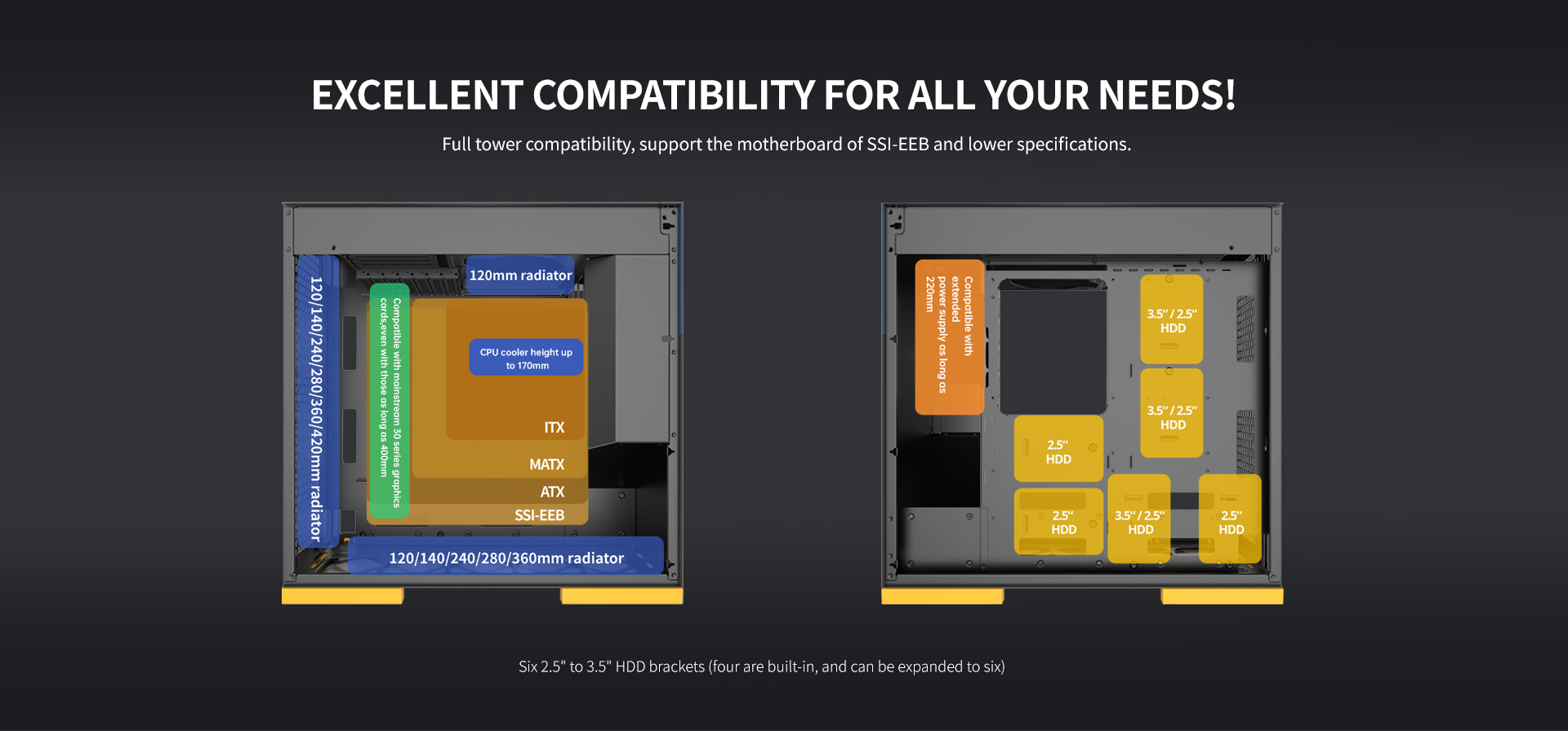

Six 2.5" to 3.5" HDD brackets (four are built-in, and can be expanded to six) can be mounted,and this is 50% higher than products at the same level

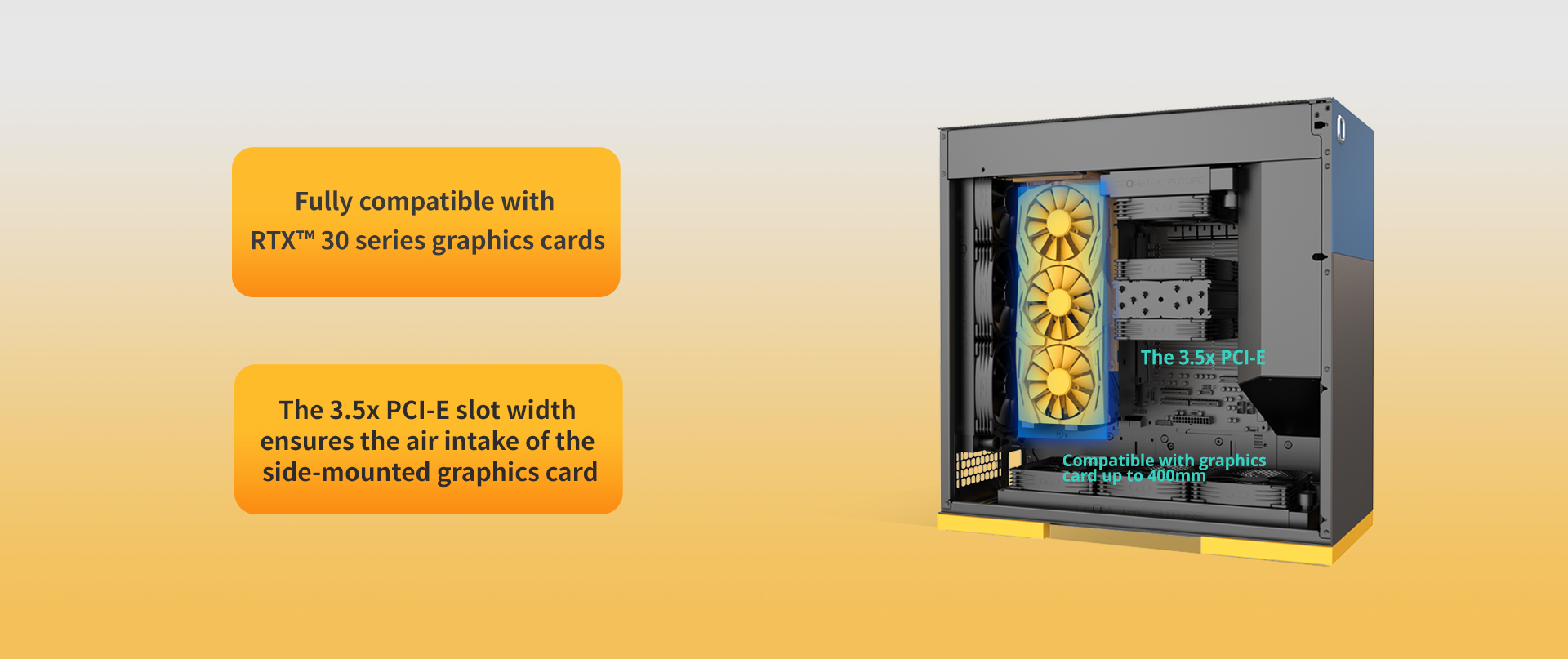

The 3.5x PCI-E slot width ensures the air intake of the side-mounted graphics card, and the airflow space is 50% more compared with the products at the same level

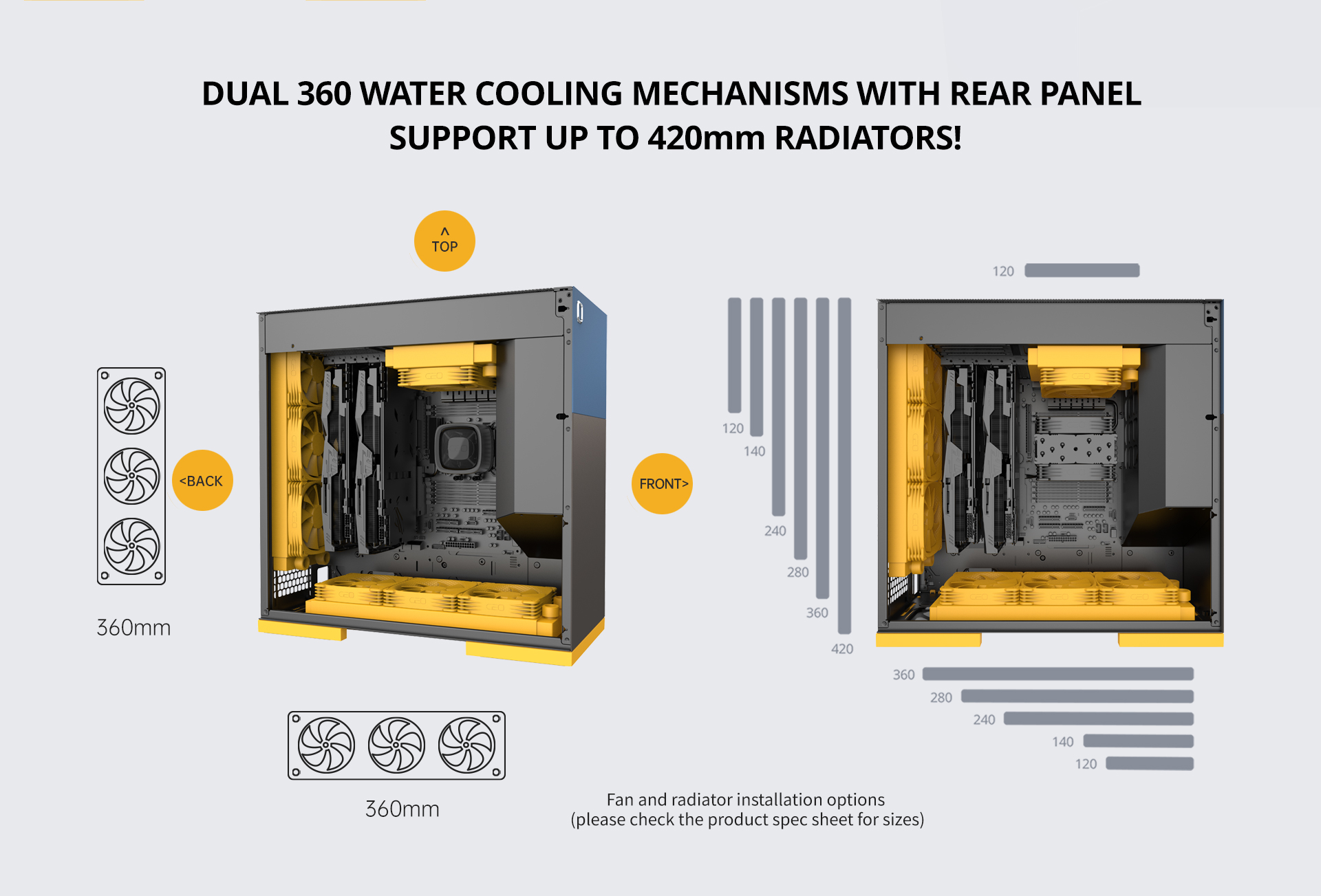

Double 360mm+120mm radiators, the rear panel can install 420mm radiator, and the heat dissipation and capacity expansion are 40% more than products at the same level
| Case Type | Mid Tower |

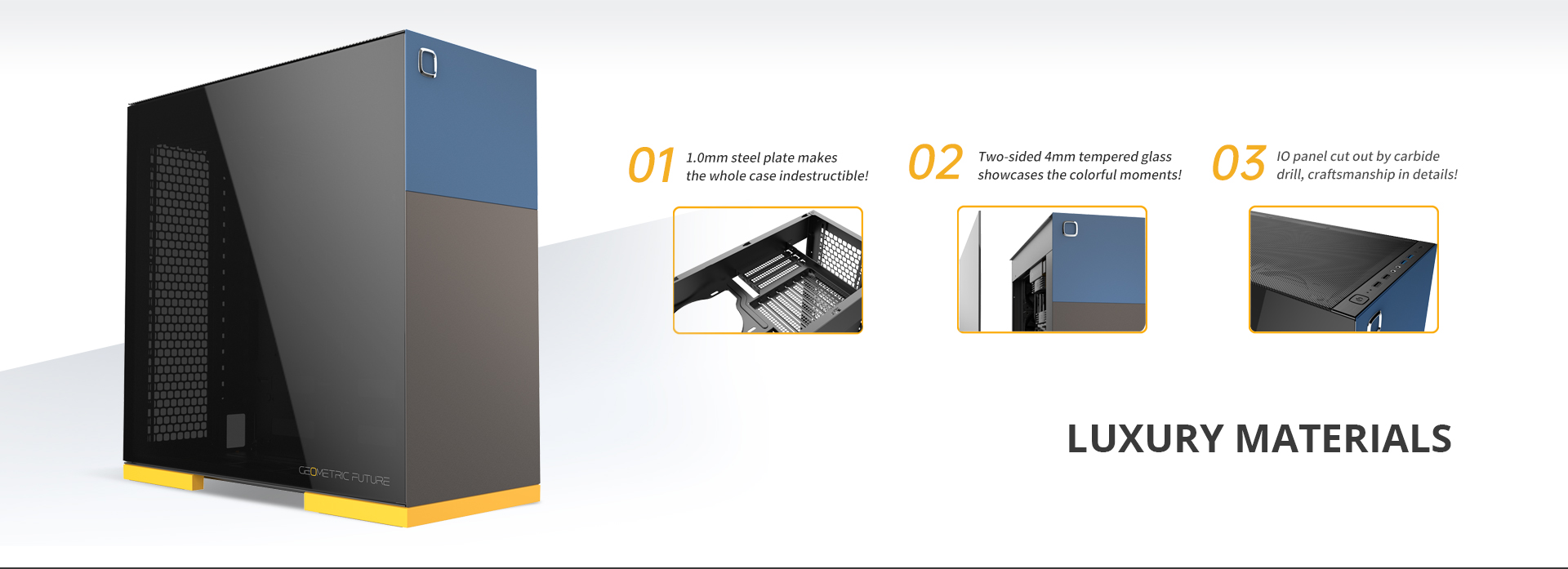

| Material | Steel T1.0 ，Tempered Glass T4.0 |

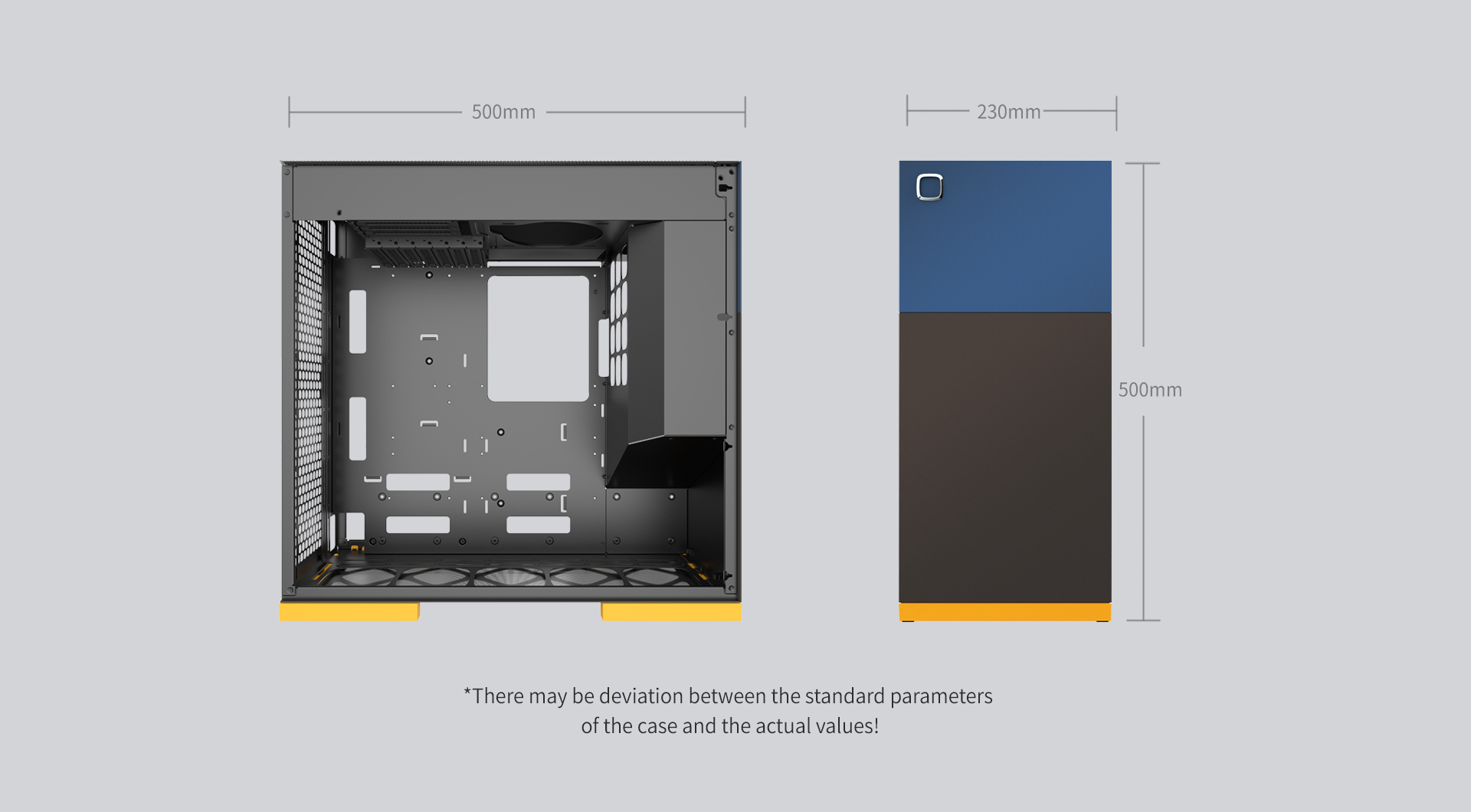

| Product Dimension ( H x W x D ) | 500×230×500mm, 19.7"×9.1"×19.7" |
| Drive Bay | Max : 3x3.5'', 3x2.5''/ 6x2.5'' tray |
| M/B Compatibility | E-ATX（12"×13"）, ATX, Micro-ATX, Mini-ITX |
| Power Supply | PSII : ATX 12V（Length < 220 mm） |

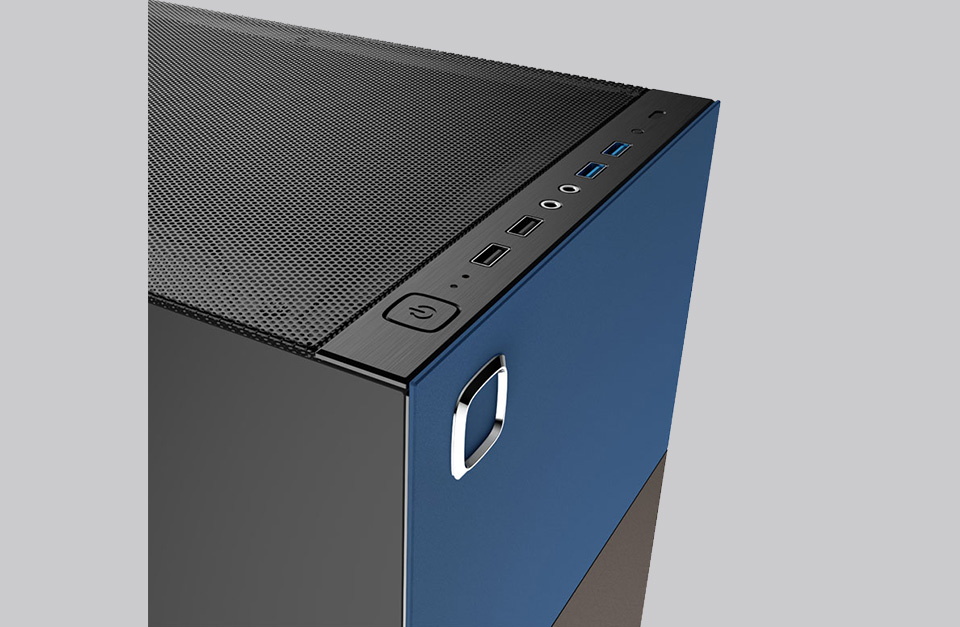

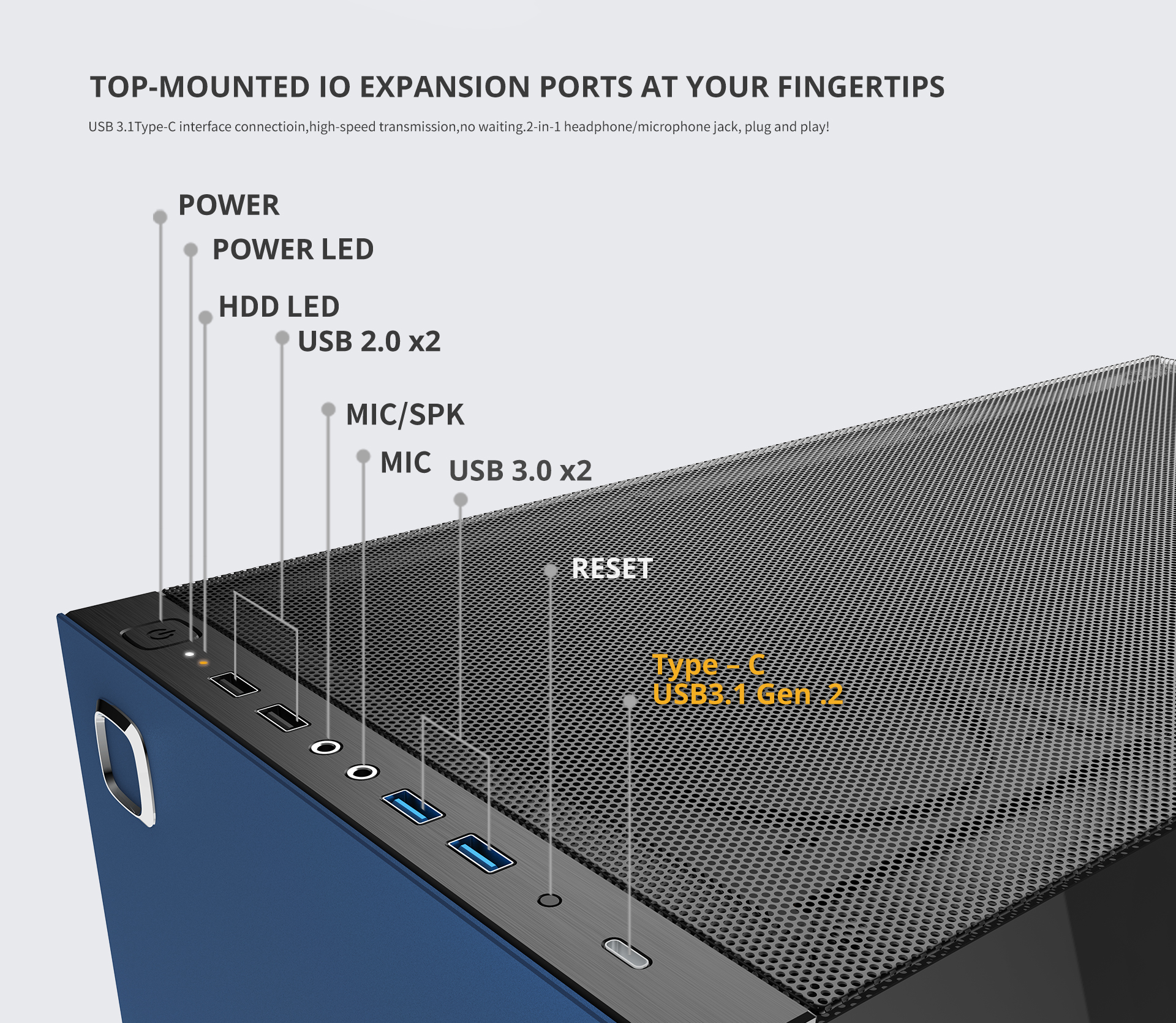

| I/O Ports | USB 3.0 x 2 , USB 2.0 x 2 , HD Audio（CTIA-SPK/MIC ) , Type – C USB3.1 Gen .2 |
| Expansion Slots( Maximum Space） |
PCI-E x 7：Length<400mm（No Cooling of bottom） / Width <175mm Lateral PCI-E x 3：Length<412mm（No Cooling of bottom） / Width<150mm （ CPU Heatsink Height<105mm) / Height<65mm |

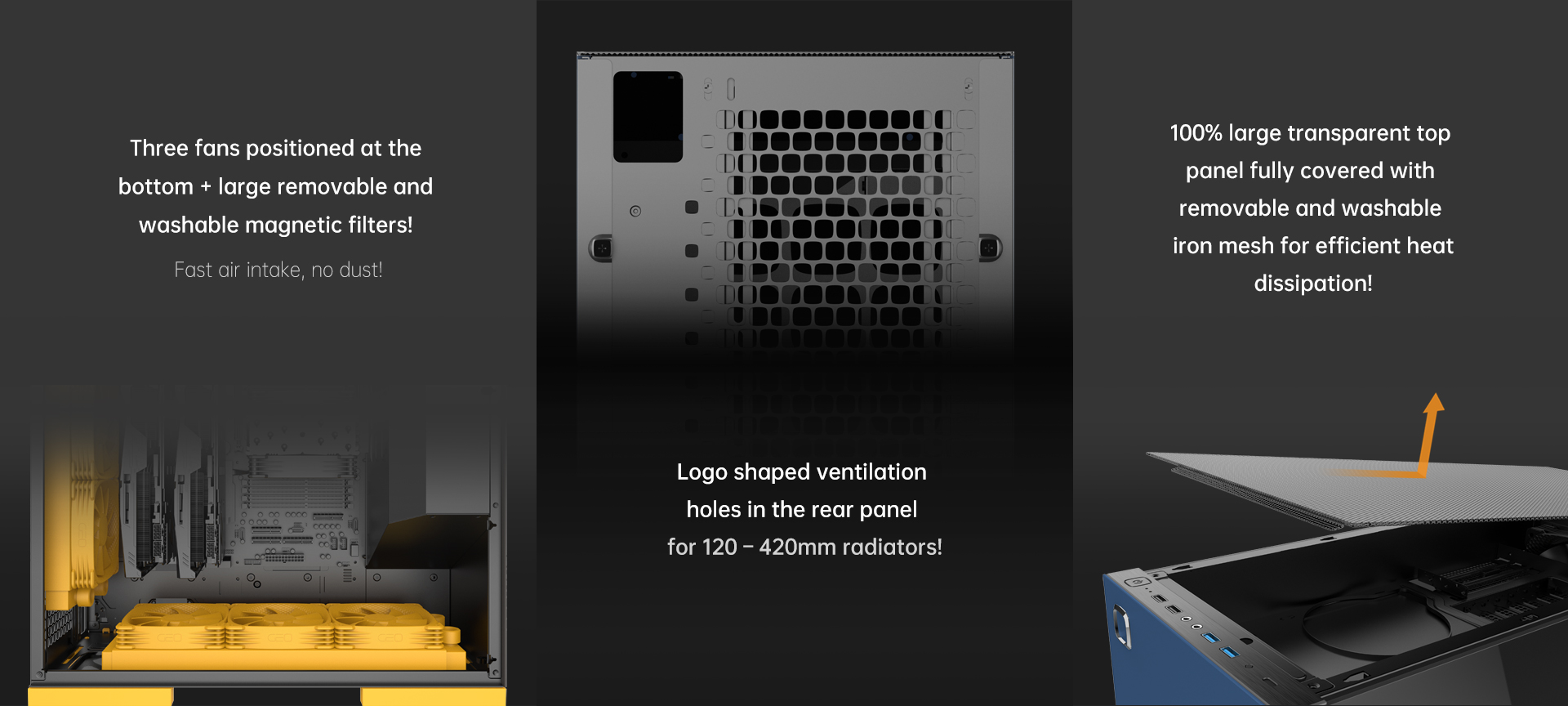

| Thermal Solution | Top : 120mm Fan x 120mm Radiator (Optional) Rear : 120/140mm Fan x 3 420mm Radiator( Length<470mm / Thickness < 55mm ) (Optional) 360/280mm Radiator ( Length<400mm / Thickness < 65mm )(Optional) Bottom : 120/140mm Fan x 3 360/280mm Radiator ( Length < 485mm )(Optional) |

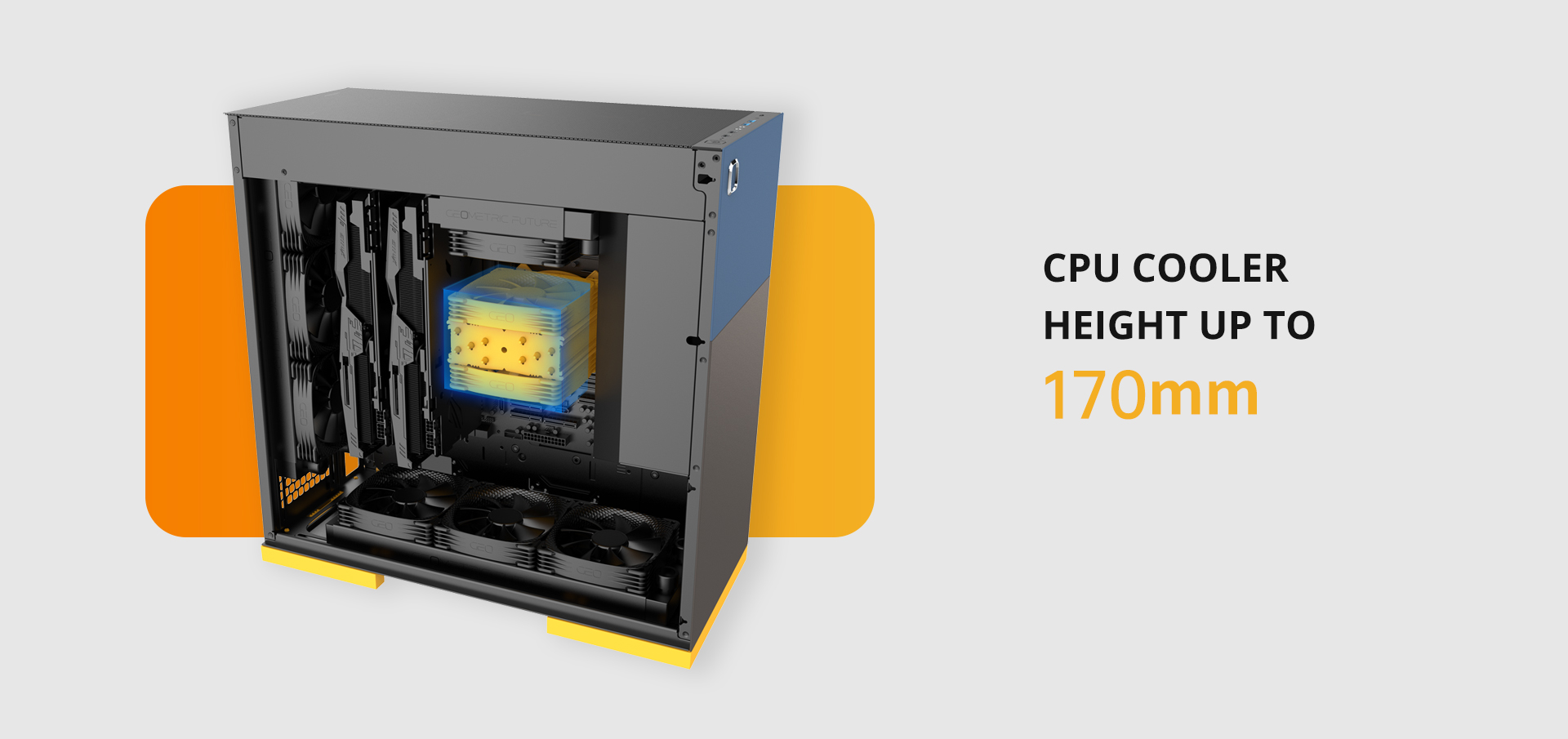

| CPU Heatsink | Height<170mm |
