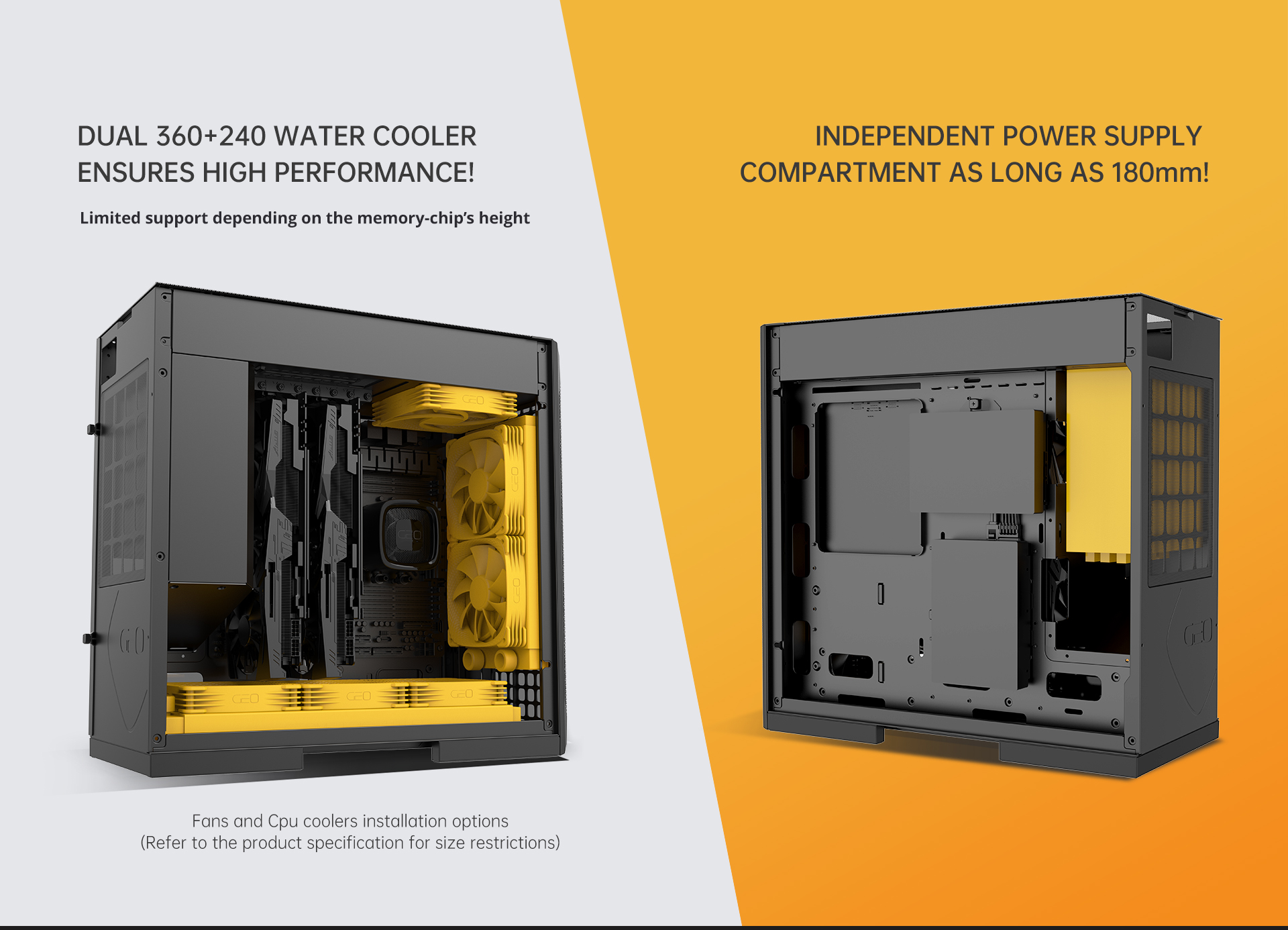

360+120 water cooler ensures high performance!
-

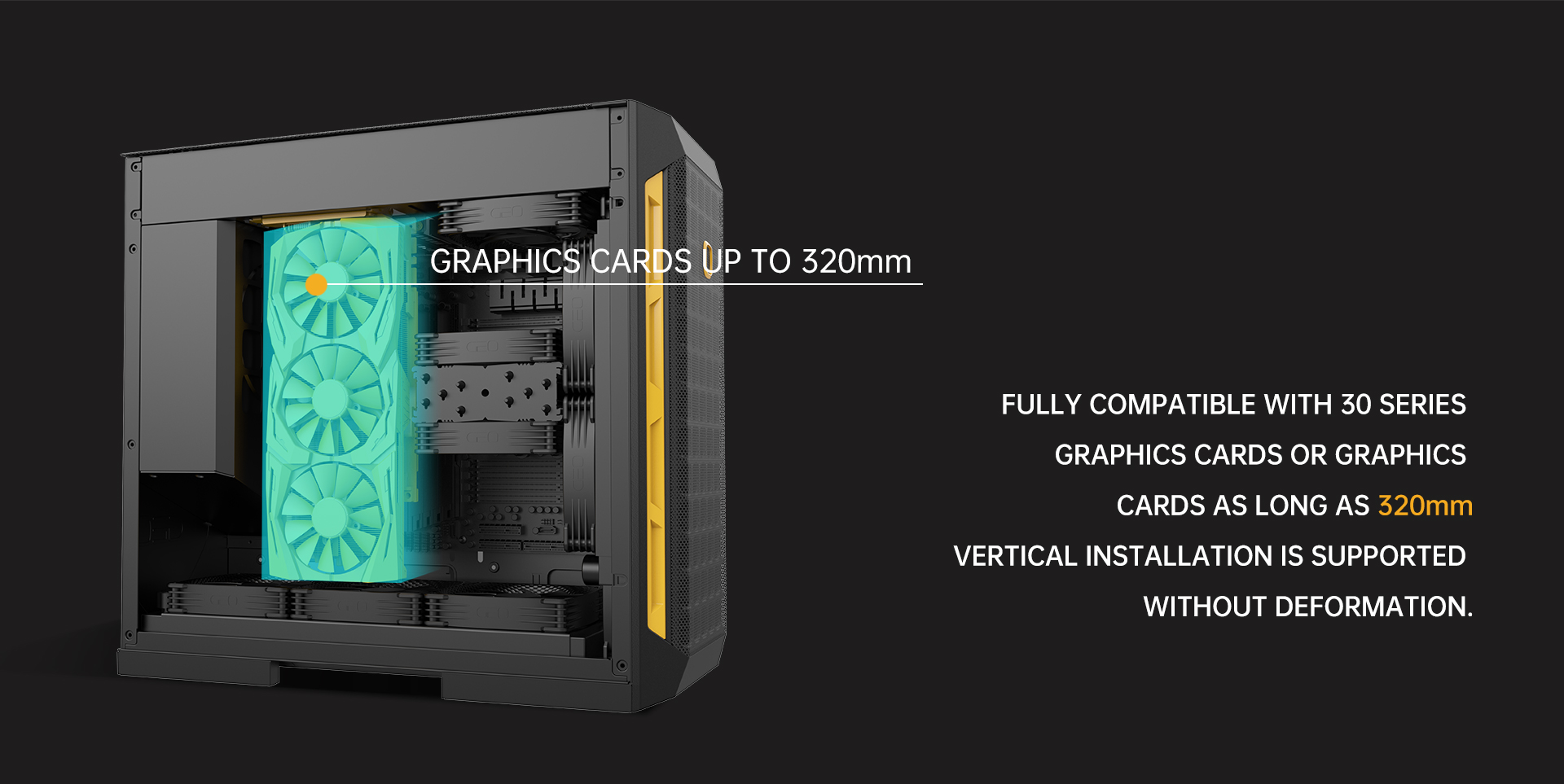

Fully compatible with 30 series graphics cards or graphics cards as long as 350mm, vertical installation is supported without deformation.
-

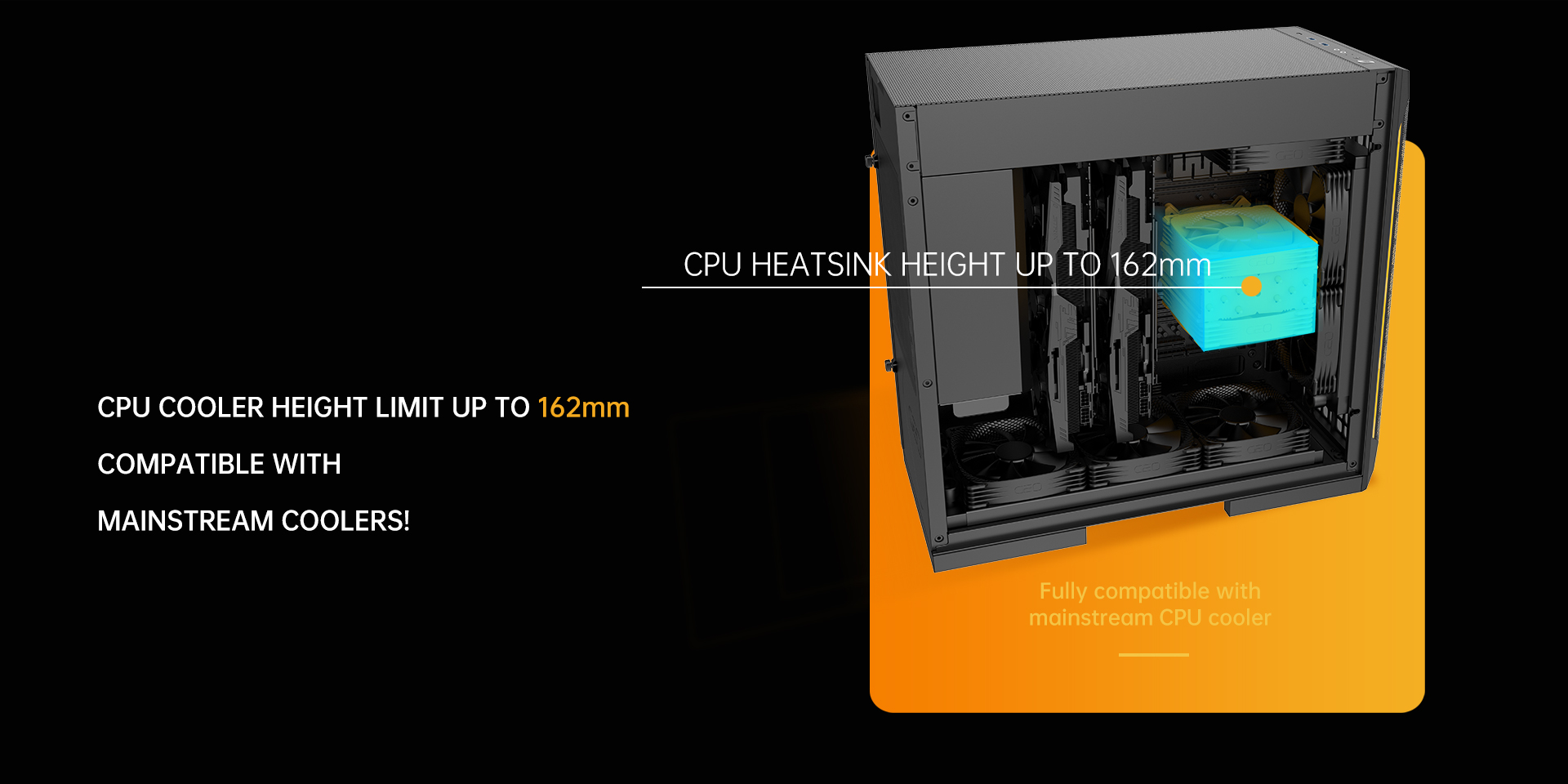

CPU cooler height limit up to 162mm, compatible with mainstream coolers!
Specifications
| Model | 6 |
| Case Type | Mid Tower |

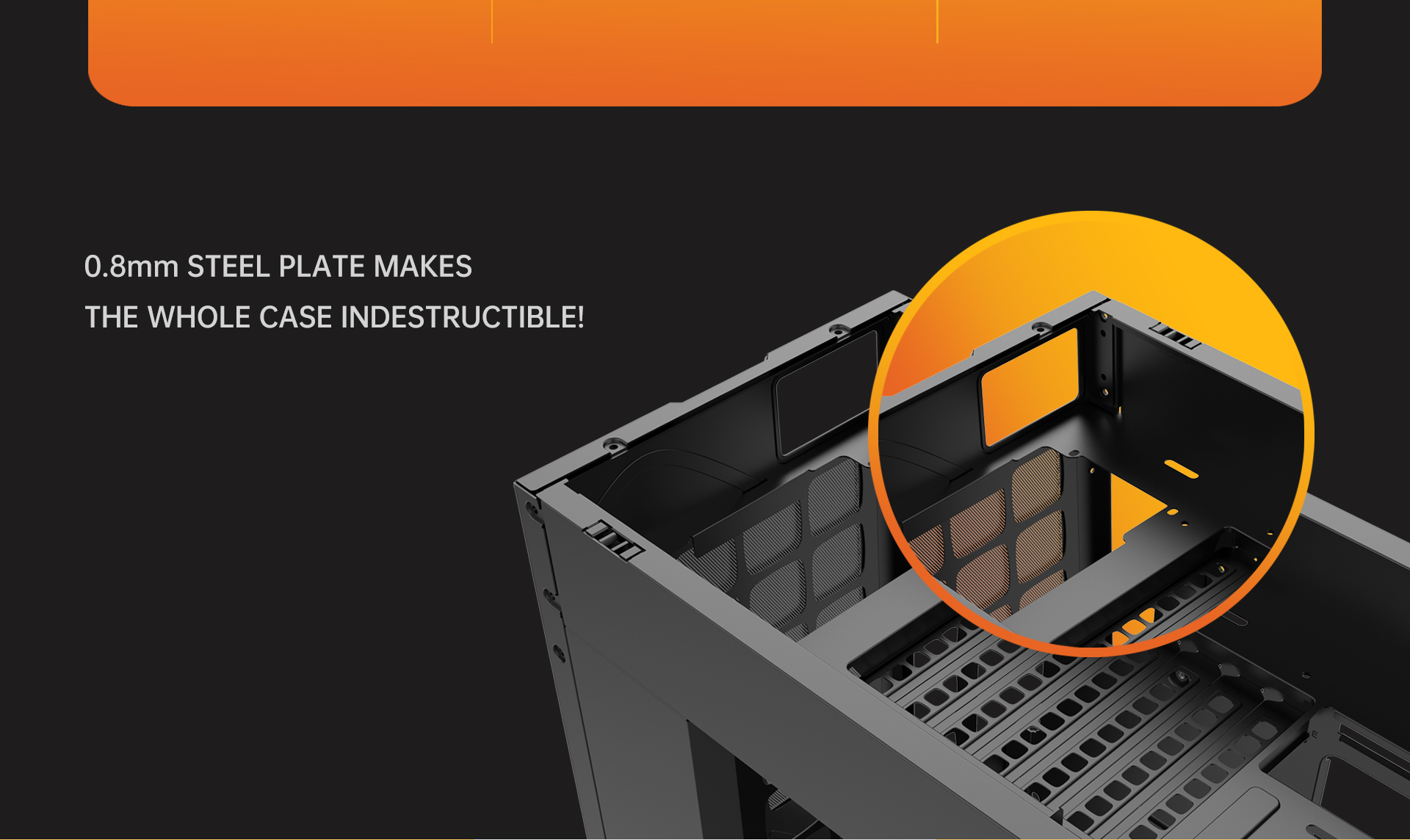

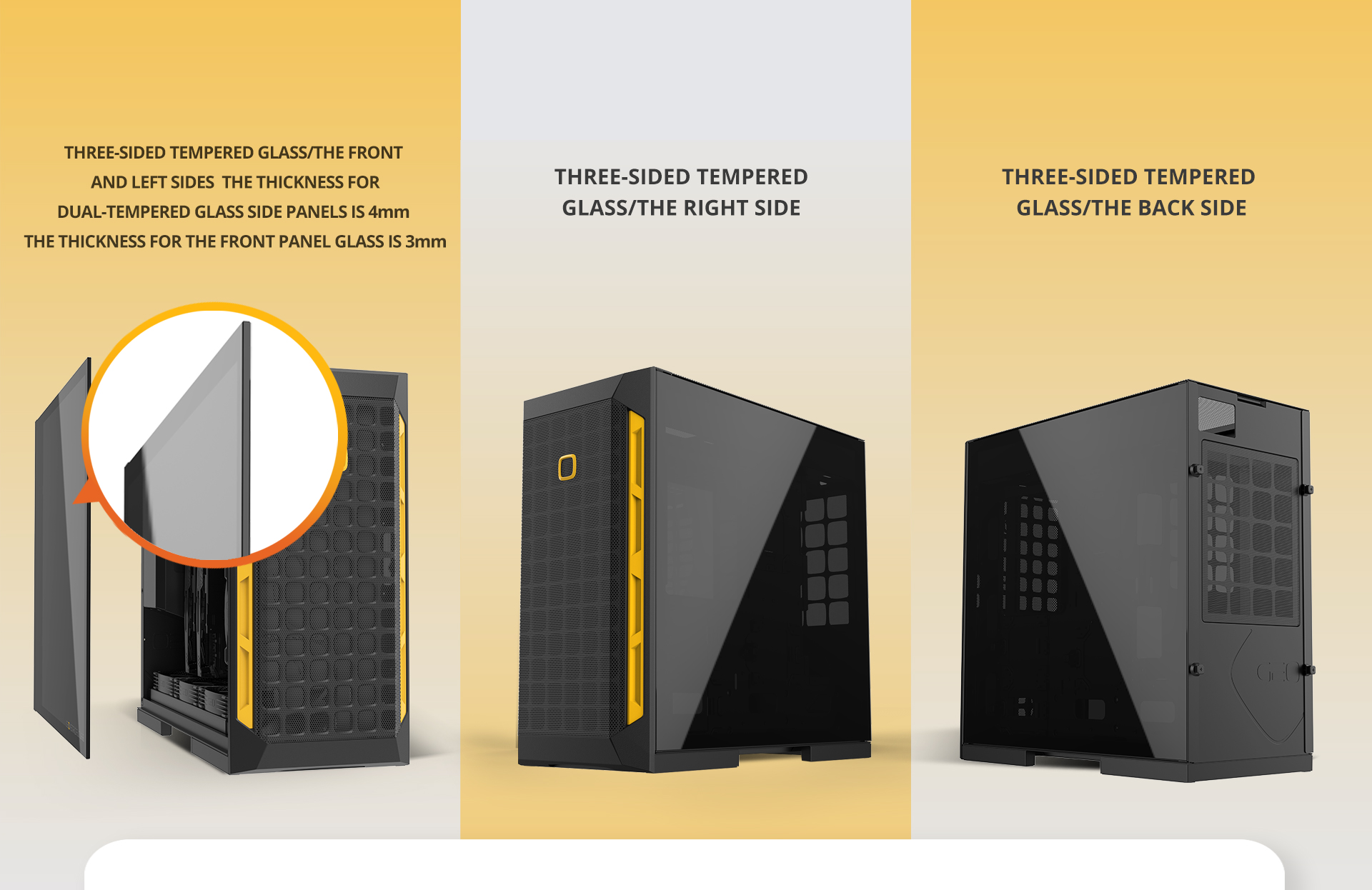

| Material | Steel T0.8 ，Tempered Glass T4.0 |

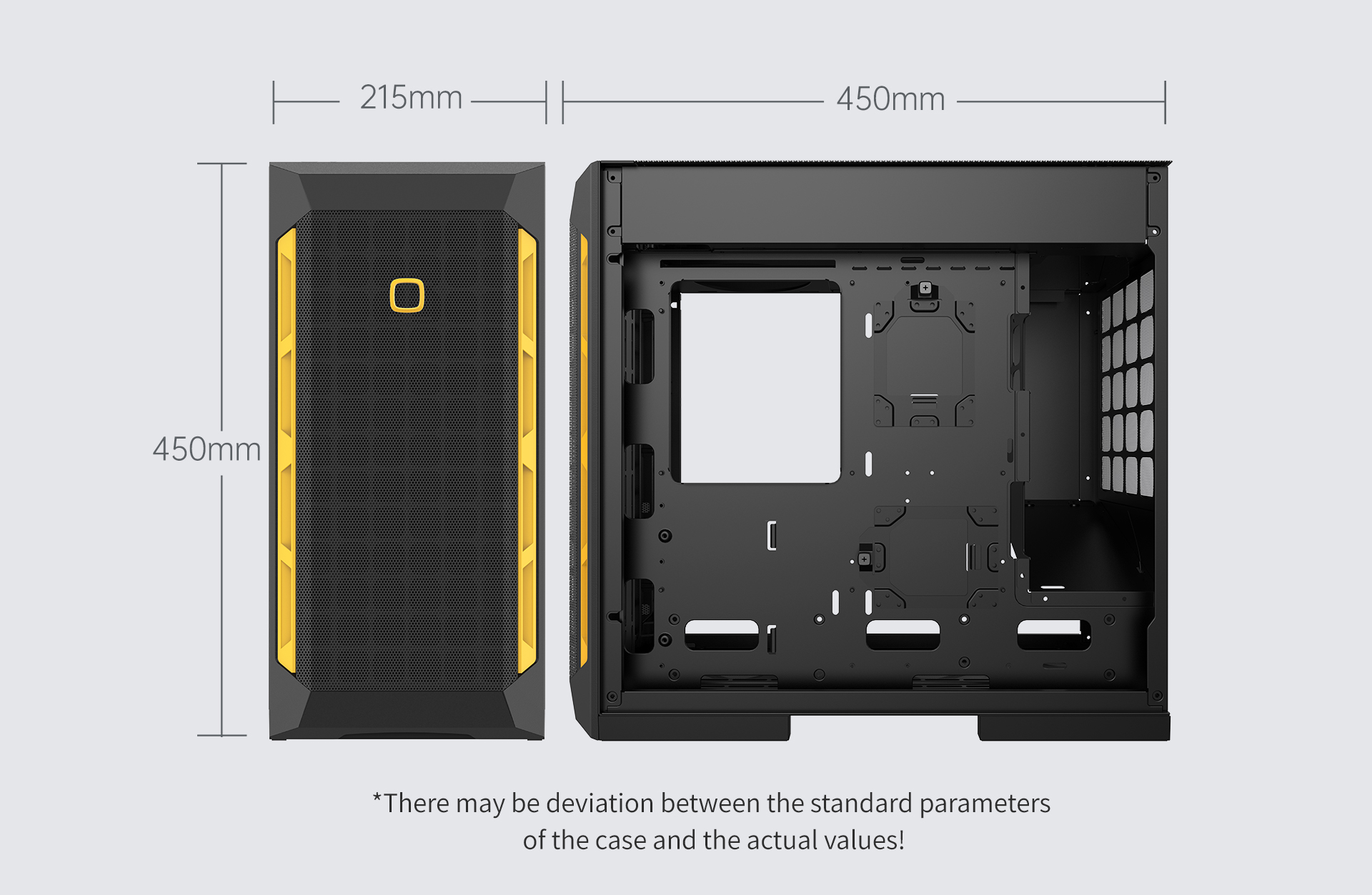

| Product Dimension ( H x W x D ) | 450 x 215 x 450 mm, 17.7“ x 8.5” x 17.7” |
| Drive Bay | Max：4 x 3.5”/2.5“ tray |

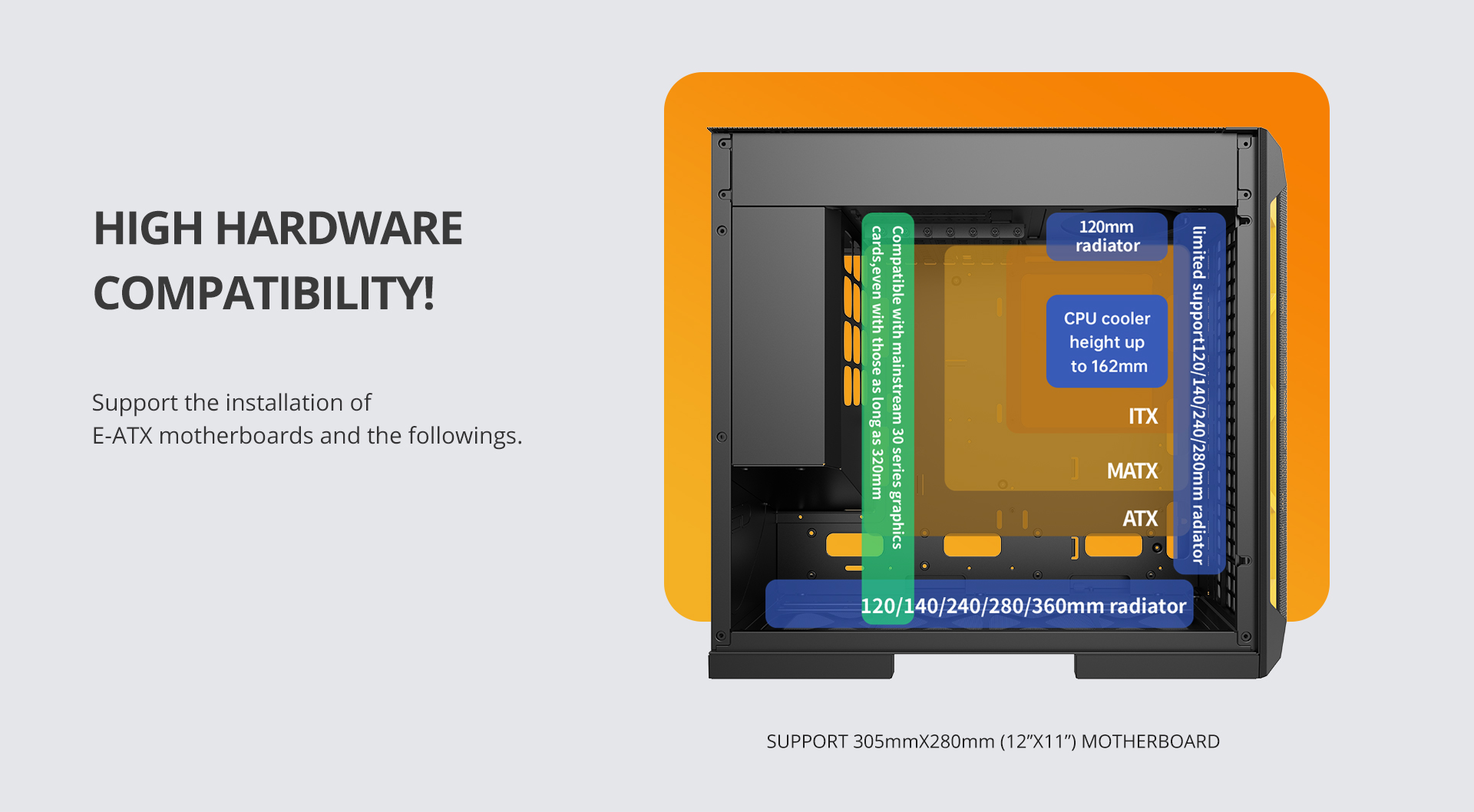

| M/B Compatibility |
E-ATX（12” x 11”）, ATX , Micro - ATX , Mini - ITX |
| Power Supply | PSII：ATX 12V（Length < 180 mm） |

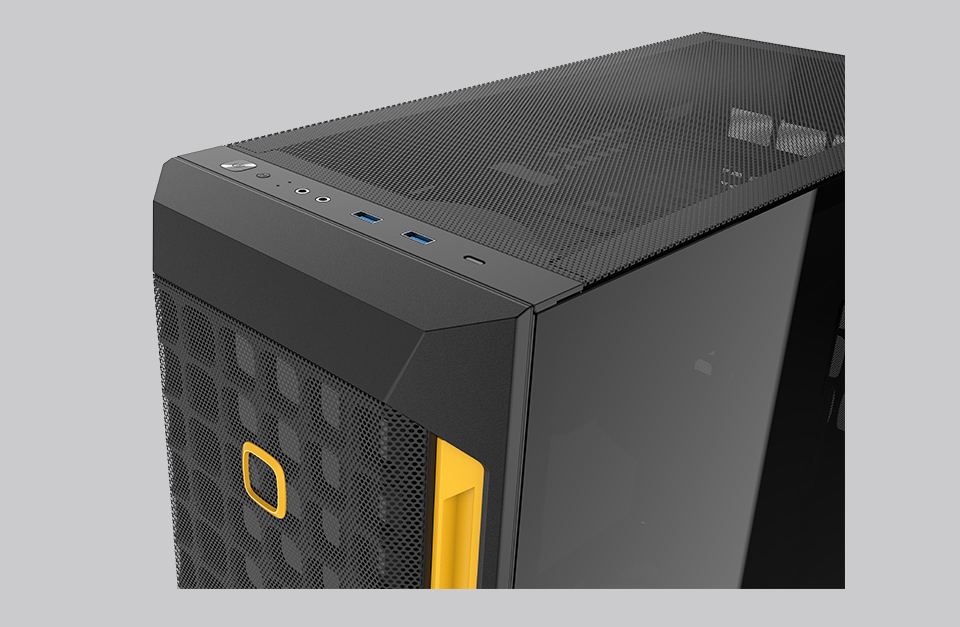

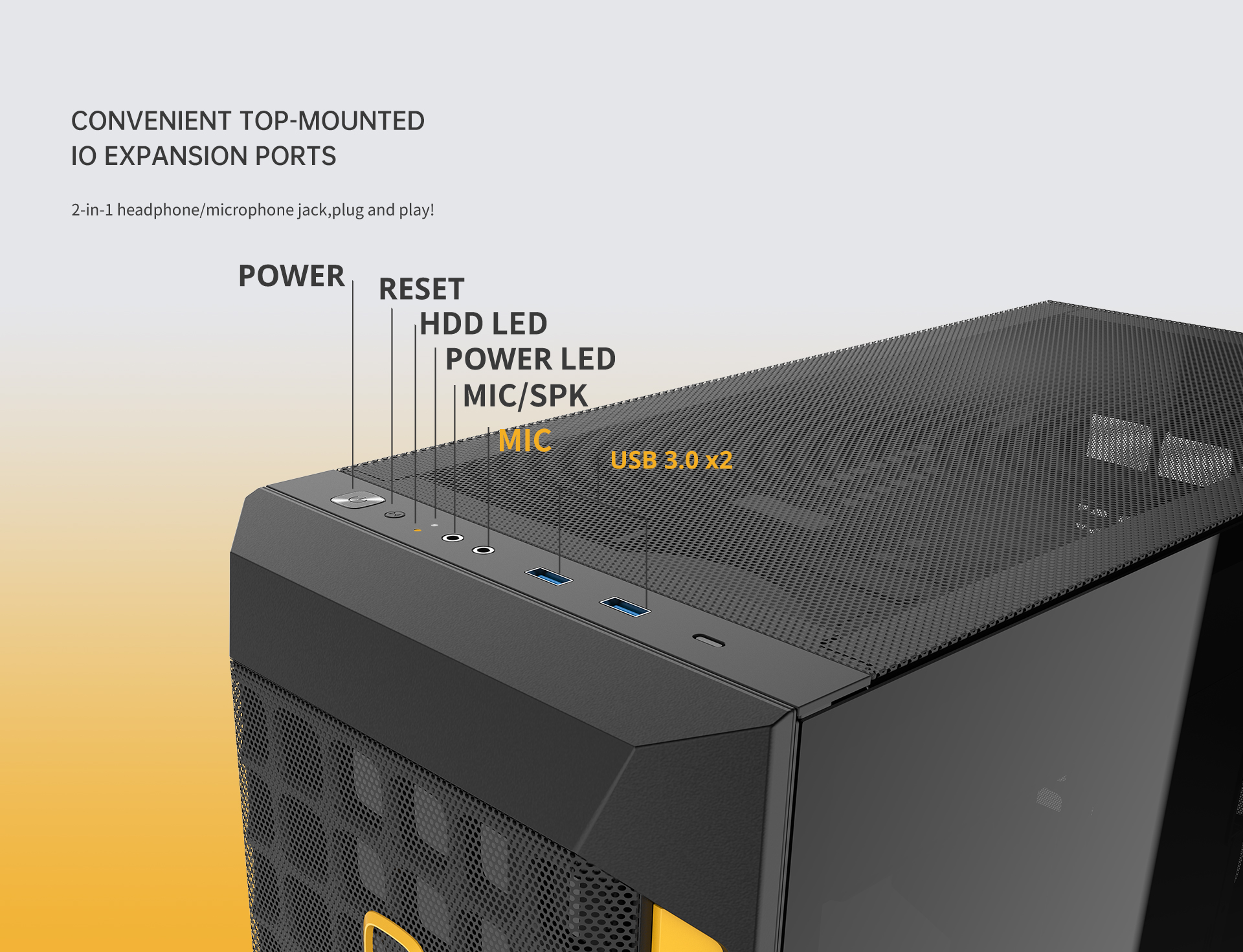

| I/O Ports | USB 3.0 x 2 , HD Audio （CTIA-SPK/MIC) |
| Expansion Slots( Maximum Space） |
PCI-E x 7：Length <350mm（No Cooling of bottom） / Width <165mm Lateral PCI-E x 2：Length <360mm（No Cooling of bottom） / Width <165mm / Height<54mm |
| Thermal Solution |

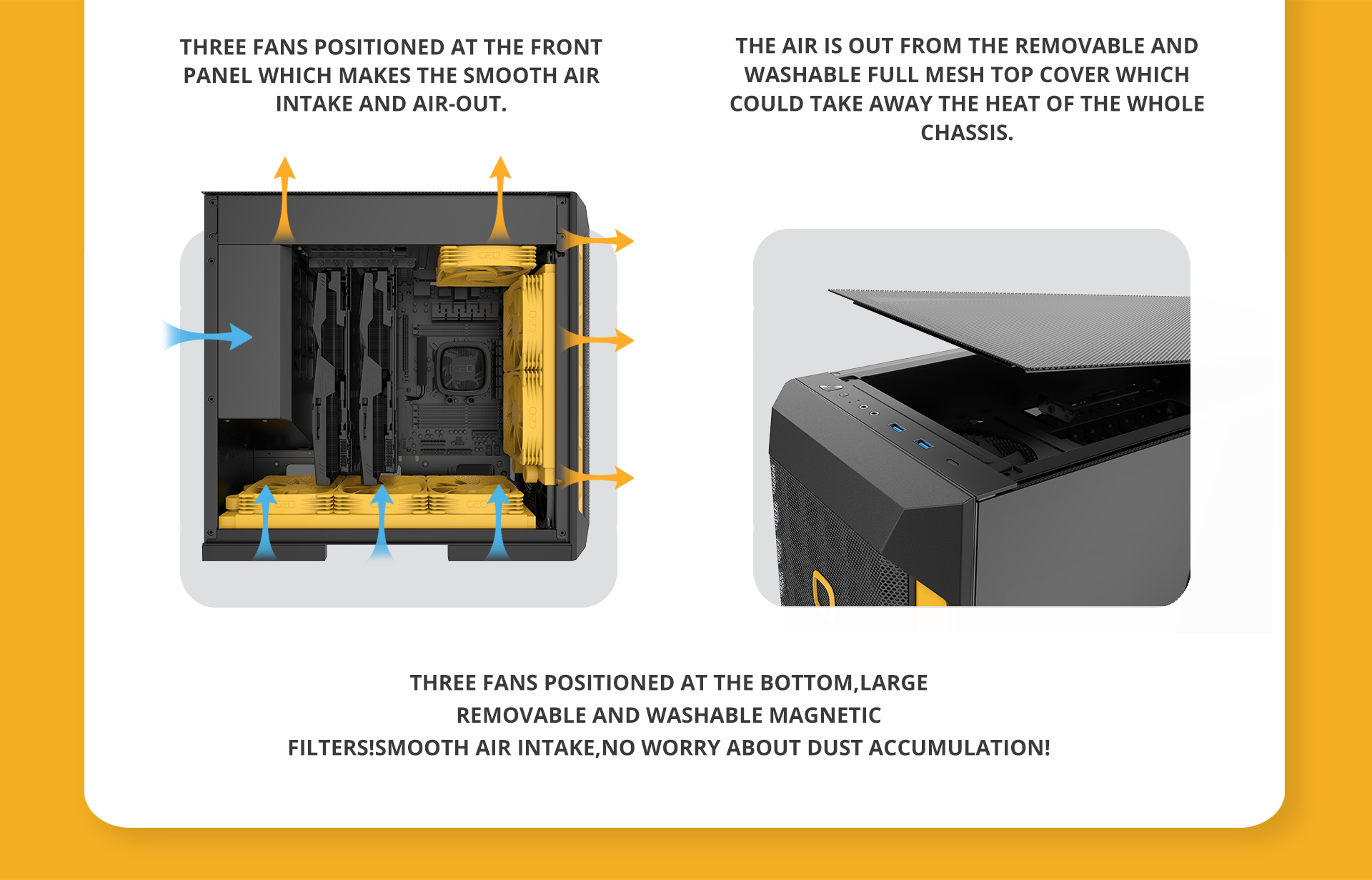

Top ：120mm Fan x 1 120mm Radiator (Optional) Front：120mm Fan x 3 / 140mm Fan x 2 (Optional) 240/280mm Radiator ( Length < 361mm / Thickness is related to the height limit of the main board ) (Optional) Bottom：120/140mm Fan x 3 (Optional) 360/280mm Radiator ( Length < 440mm ) (Optional) |
| CPU Heatsink |
Height < 162mm |
