Raphael

The future is in the eye of the beholder together with infinite geometric imagination! Beautiful and efficient in heat dissipation! Double-sided panoramic black glass, shiny yet restrained!

Color
Download

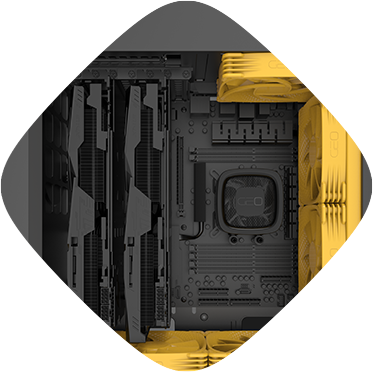

  • 360+120 water cooler ensures high performance!

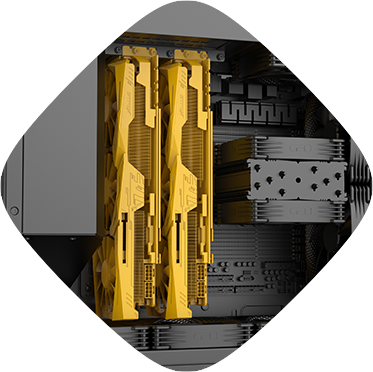

  • Fully compatible with 30 series graphics cards or graphics cards as long as 350mm, vertical installation is supported without deformation.

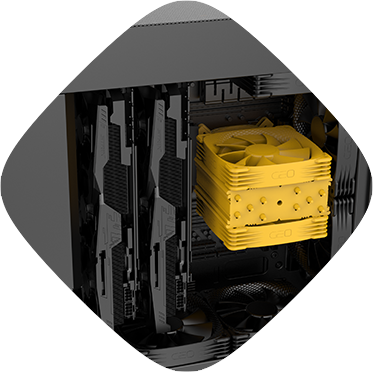

  • CPU cooler height limit up to 162mm, compatible with mainstream coolers!

Specifications
Model 6
Case Type Mid Tower
Material Steel T0.8 ,Tempered Glass T4.0
Product Dimension ( H x W x D ) 450 x 215 x 450 mm, 17.7“ x 8.5” x 17.7”
Drive Bay Max:4 x 3.5”/2.5“ tray
M/B Compatibility

E-ATX(12” x 11”), ATX , Micro - ATX , Mini - ITX

Power Supply PSII:ATX 12V(Length < 180 mm)

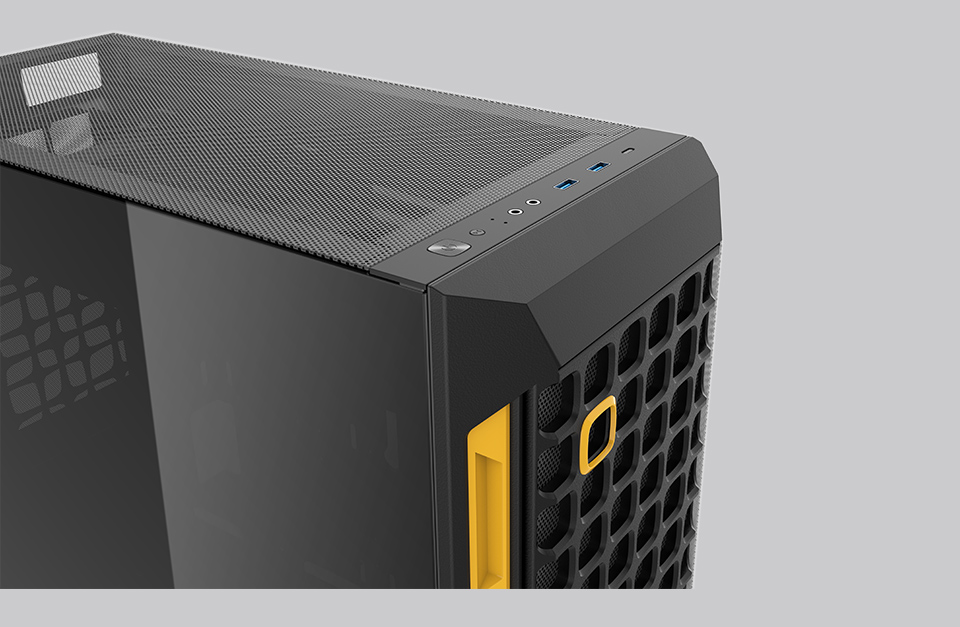

I/O Ports USB 3.0 x 2 , HD Audio (CTIA-SPK/MIC)
Expansion Slots( Maximum Space) PCI-E x 7:Length <350mm(No Cooling of bottom) / Width <165mm
Lateral PCI-E x 2:Length <360mm(No Cooling of bottom) / Width <165mm / Height<54mm
Thermal Solution

Top :120mm Fan x 1 120mm Radiator (Optional)

Front:120mm Fan x 3 / 140mm Fan x 2 (Optional)

240/280mm Radiator ( Length < 361mm / Thickness is related to the height limit of the main board ) (Optional)

Bottom:120/140mm Fan x 3 (Optional)

360/280mm Radiator ( Length < 440mm ) (Optional)

CPU Heatsink

Height < 162mm
